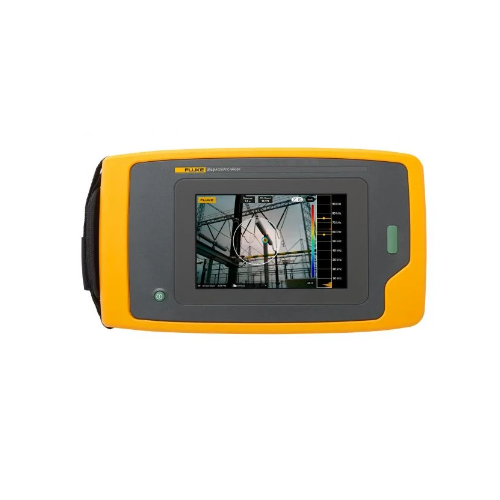

FLUKE FLK-II910 Precision Acoustic Imager

Sensors

Frequency band: 2 kHz to 100 kHz

Detection range: 0.5 to > 120 meters (1.6 to > 393 feet)*

Field of View: 63 ° ± 5 °

Nominal frame rate: 25 FPS

Built-in digital camera (visible light)

Field of View (FOV): 63 ° ± 5 °

Focus: Fixed lens

Display

Size: 7" LCD with backlight, under-sunlight readable

Resolution: 1280 x 800 (1,024,000 pixels)

Touchscreen: Capacitive

Acoustic Image: Yes, SoundMap™ image

Image storage

Storage capacity: Internal memory with the capacity for 999 picture files and 20 video files

Image format: Blended visual and SoundMap™.JPG or . PNG

Video format: Blended visual and SoundMap™.MP4

Video length: 5 minutes maximum

Digital export: USB-C for data transfer

Software

Ease of use: Intuitive user interface

Trend graphs: Frequency and dB scale

Spot markers: dB level reading at center point of the image

Battery

Batteries (field-replaceable, rechargeable): 2 x Rechargeable Li-ion

Battery life: 6 hours/battery (product includes spare battery)

Battery charging time: 3 hours

Battery charging system: External charger

General Specifications

Standard palettes: 3: Grayscale, Ironbow, Blue-Red

Size (H x W x L): 186 x 322 x 68 mm (7.3 x 12.7 x 2.7 inches)

Weight (battery included): 2.15 kg (4.74 lbs)

Ingress Protection (IP): IP40 protection
