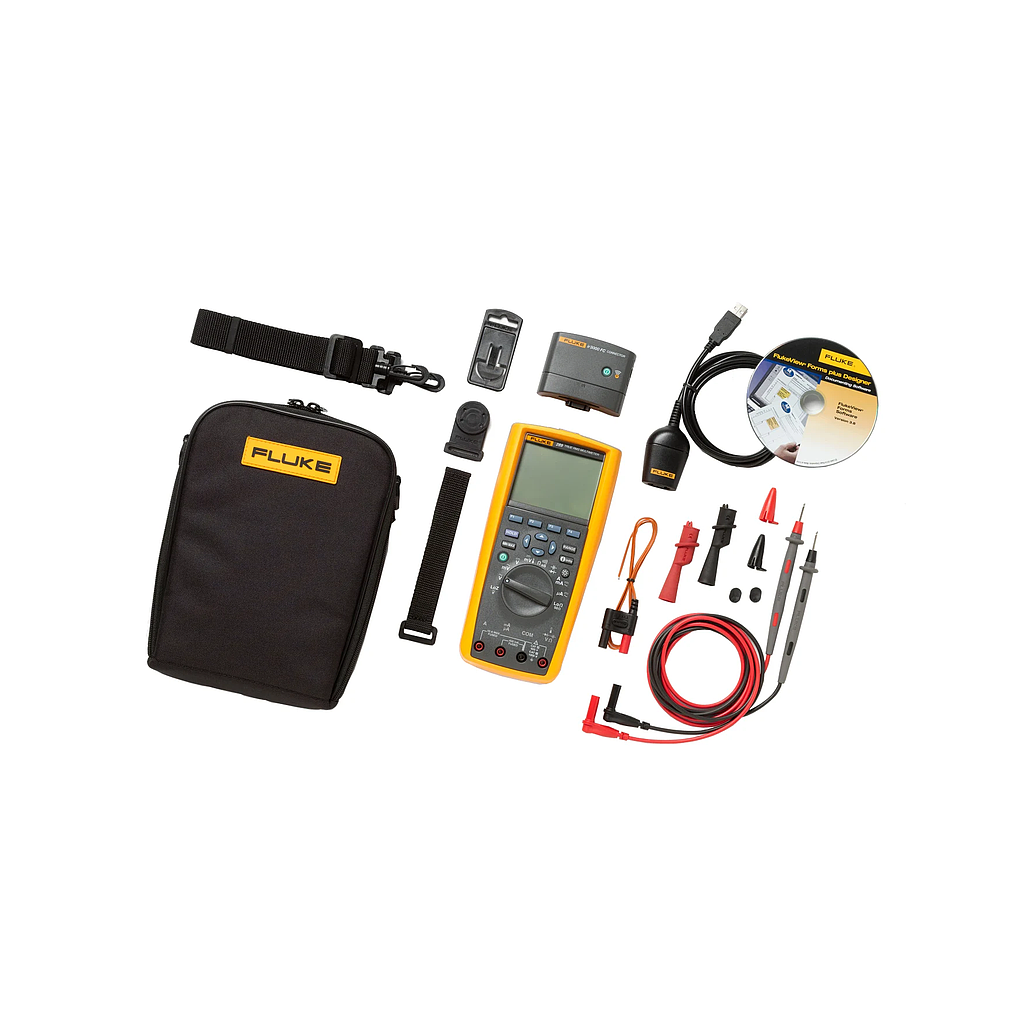

FLUKE FLK-289/FVF/IR3000 True-Rms Electronics Logging Digital Multimeter With Wireless Connect Module And View Software Combo Kit

Range/ Basic Accuracy:

DC volts: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V/ 0.025 %

AC volts: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V/ 0.4 % (True-RMS)

DC current: 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A/ 0.05 %

AC current: 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A/ 0.6 % (True-RMS)

Temperature (excluding probe): -200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F)/ 1.0 %

Resistance: 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ,5.0000 MΩ, 50.00 MΩ, 500.0 MΩ/ 0.05 %

Capacitance: 1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF/ 1.0 %

Frequency: 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz/ 0.005 % + 1

Connectivity: Optional infrared connector via Fluke ir3000 FC

General Specifications:

Maximum voltage between any terminal and earth ground: 1000 V

Battery type: 6 AA alkaline batteries, NEDA 15A IECLR6

Battery life: 100 hours minimum, 200 hours in logging mode

Temperature: Operating: -20 °C to 55 °C; Storage: -40 °C to 60 °C

Relative humidity: 0 to 90 % (0 t 37 °C), 0 to 65 % (37 °C to 45 °C), 0 to 45 % (45 °C to 55 °C)

Electromagnetic compatibility: EMC EN61326-1

Vibration: Random vibration per MIL-PRF-28800F Class 2

Shock: 1 meter drop per IEC/EN 61010-1 3rd Edition

Size (HxWxL): 22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in)

Weight: 870.9 g (28 oz)

Multiple on screen displays: Yes

LoZ: Yes

50 ohm range: Yes

Filter for measurements on motor drives: Yes

True-RMS AC bandwidth: 100 kHz

dBV/dBm: Yes

DC mV resolution: 1 μV

Megohm range: Up to 500 MΩ

Conductance: 50.00 nS

Continuity beeper: Yes

Temperature (°C and °F): -200 °C to 1350 °C

Battery/fuse access: Yes/Yes

Elapse time clock: Yes

Time of day clock: Yes

Min-Max-Avg: Yes

Frequency: Yes

Duty cycle/pulse width: Yes

Info button on board help: Yes

Hold: Yes

Isolated optical interface: Yes

Auto/touch hold: Yes

Reading memory: Yes

Log to PC: Yes

On board logging with TrendCapture: Yes

Logging memory up to: 15,000 readings

Wireless connectivity (optional): Yes
