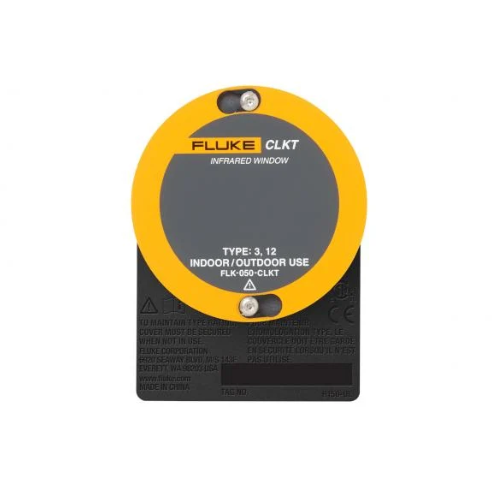

Name: FLUKE FLK-050-CLKT IR Window for Outdoor and Indoor Application
Brand: FLUKE
Price: 316.09000000000003 USD
Availability: OutOfStock

ManufacturerFLUKE(View more products from this manufacturer)

ModelFLK-050-CLKT

P/N3460346

Warranty12 months

USD 316.09

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Crystal insert diameter: 50 mm (1.97 in)

Viewing aperture diameter: 43 mm (1.7 in)

Viewing aperture area: 1452 mm2 (2.25 in2)

Thickness: 2 mm (0.08 in) ClirVu coating: Yes

Shortwave IR capable: Yes

Midwave IR capable: Yes

Longwave IR capable: Yes

Ultraviolet (UV) capable: Yes

Visual capable: Yes

Fusion capable: Yes

Canadian Standards Association (CSA) approval: Yes

Environmental: Type 3/12 ANSI C37.20.7: 50 kA for 30 cycles @ 60 Hz

EMACS 14-1 Type-B: 40 kA for 30 cycles @ 60 Hz I

EC 62271: 20 kA for 5 cycles @ 50 Hz

Cyclic humidity withstand: Yes

Vibration withstand: Yes

Resistance of insulating materials to 100°: Yes

Resistance of insulating material to ball pressure (Brinell): Yes

Glow-wire test 650°C: Yes

Up to 11 kV marine switchgear, indoor or outdoor: Yes

IP rating: IP65
