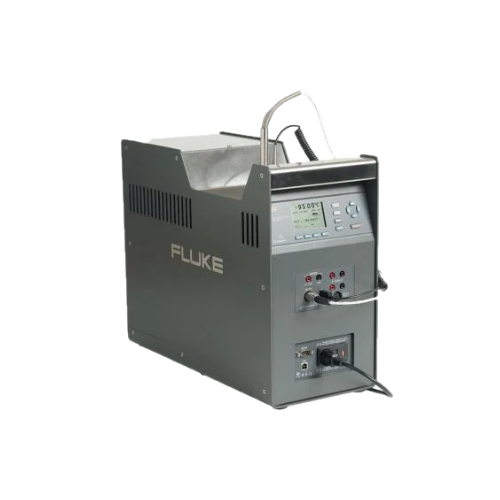

Fluke (Calibration) 9190A-E Ultra-Cool Field Metrology Well (-95°C ~ 140°C)

Temperature Range at 23 °C: –95 °C to 140 °C (–139 °F to 284 °F)

Display Accuracy: ± 0.2 °C full range

Accuracy with external reference: ± 0.05 °C full range

Stability: ± 0.015 °C full range

Axial Uniformity at 40 mm (1.6 in): ± 0.05 °C full range

Immersion (Well) Depth: 160 mm (6.3 in)

Well diameter: 30 mm (1.18 in)

Heating Time: 15 min: 95 °C to 140 °C: 40 min

Cooling Time: 23 °C to –90 °C: 80 min

Resolution: 0.01 °

Display: LCD, °C or °F user-selectable

(H x W x D): 480 mm x 205 mm x 380 mm

Weight: 16 kg

Power Requirements: 100 V to 115 V (± 10 %) 50/60 Hz, 575 W, 200 V to 230 V (± 10 %) 50/60 Hz, 575 W

Computer Interface: RS-232 and 9930 Interface-it control software included
