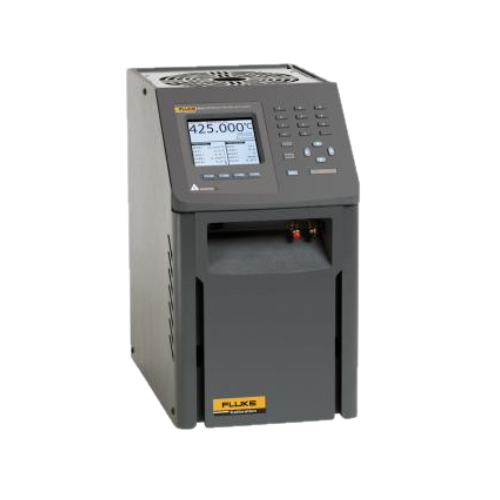

Fluke (Calibration) 9172-E Field Metrology Well (35°C ~ 425°C)

Temperature Range at 23 °C: 35 °C to 425 °C (95 °F to 797 °F)

Display Accuracy:

± 0.1 °C: 35 °C to 100 °C

± 0.15 °C: 100 °C to 225 °C

± 0.2 °C: 225 °C to 425 °C

Stability:

± 0.005 °C: 35 °C to 100 °C

± 0.008 °C: 100 °C to 225 °C

± 0.01 °C: 225 °C to 425 °C

Axial Uniformity at 60 mm :

± 0.05 °C: 35 °C to 100 °C

± 0.1 °C: 100 °C to 225 °C

± 0.2 °C: 225 °C to 425 °C

Hysteresis: 0.04 °C

Well Depth: 203 mm (8 in)

Resolution: 0.001 °C

Display: LCD, °C or °F user-selectable

Cooling Time: 220 min: 425 °C to 35 °C

Heating Time: 100 min: 27 min: 35 °C to 425 °C

Size (H x W x D): 366 x 203 x 323 mm

Weight: 13.2 kg

Power Requirements: 115 V ac (± 10 %), or 230 V ac (± 10 %), 50/60 Hz, 1025 W

Computer Interface: RS-232 and 9930

Interface-it control software included

Insert (option)
