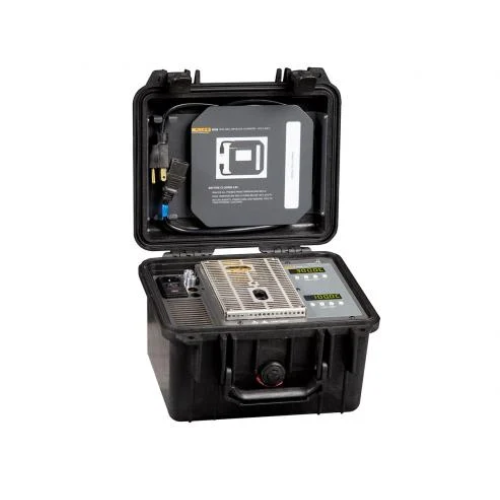

Fluke (Calibration) 9009-B-156 Dual-Well Dry-Well

Range: Hot block: 50°C to 350°C (122°F to 662°F)

Cold block: –15°C to 110°C (5°F to 230°F), (–8°C [18°F] with the hot block at 350°C [662°F])

Accuracy: Hot block: ±0.6°C

Cold block: ±0.2°C

Stability: ±0.05°C

Well-to-well uniformity: ±0.1°C

Display resolution: 0.1°

Heating times: Hot block: 30 minutes from 25°C to 350°C

Cold block: 15 minutes from 25°C to 110°C

Cooling times: Hot block: 40 minutes from 350°C to 100°C

Cold block: 16 minutes from 25°C to –15°C

Stabilization times: 8 minutes

Well depth: 4 in (102 mm)

Computer interface: RS-232 included

Power: 115 V AC (±10 %), 3 A, or 230 V AC (±10 %), 2 A, specify, 50/60 Hz, 280 W

Size (H x W x D): 178 x 267 x 248 mm (7 x 10.5 x 9.75 in)

Weight: 4.5 kg (10 lb)

Datasheet
