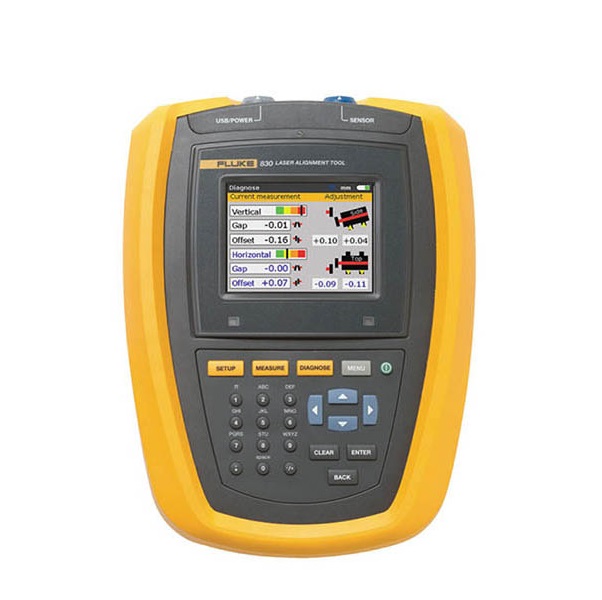

FLUKE 830/BT Laser Shaft Alignment Tool (Bluetooth; 64MB RAM; 320x240 pixels; IP65)

CPU:

- Processor: Intel XScale PXA270 running at 312 MHz

- Memory: 64 MB RAM, 64 MB flash

Display

- Type: TFT, transmissive (sunlight-readable), 65,535 colors

Backlit LED Integrated light sensor for automated adjustment of the bright- ness to the display according to the lighting conditions - extends battery life

- Resolution: 320 x 240 pixel

- Dimensions: 89 mm (3.5 in) diagonal

- Keyboard elements: Setup, measure, diagnose, menu, clear, enter, back keys, navigation cursor cross, alphanumeric keyboard and on/ off button

External interface:

- USB host and USB device (slave)

- Integrated wireless communication, Class 1, transmitting power 100 mW

- AC adapter/charger socket

Environmental protection:

- IP 65 (dustproof and water spray resistant), shockproof

- Relative humidity 10 % to 90 %

Temperature range:

- Operation: -10°C to 50°C (14°F to 122°F)

- Storage: -20°C to 60 °C (-4°F to 140°F)

Battery:

- Type: Li-Ion polymer rechargeable battery 7.4V/ 2.6Ah (optimal);

- Operating time: Up to 17 hours (33% measurement, 33% computation, 33% sleep mode)

Dimensions: Approx. 220x165x45mm (8.7”x6.5”x1.8”)

Weight: Approx. 742g (1.64lbs.)
