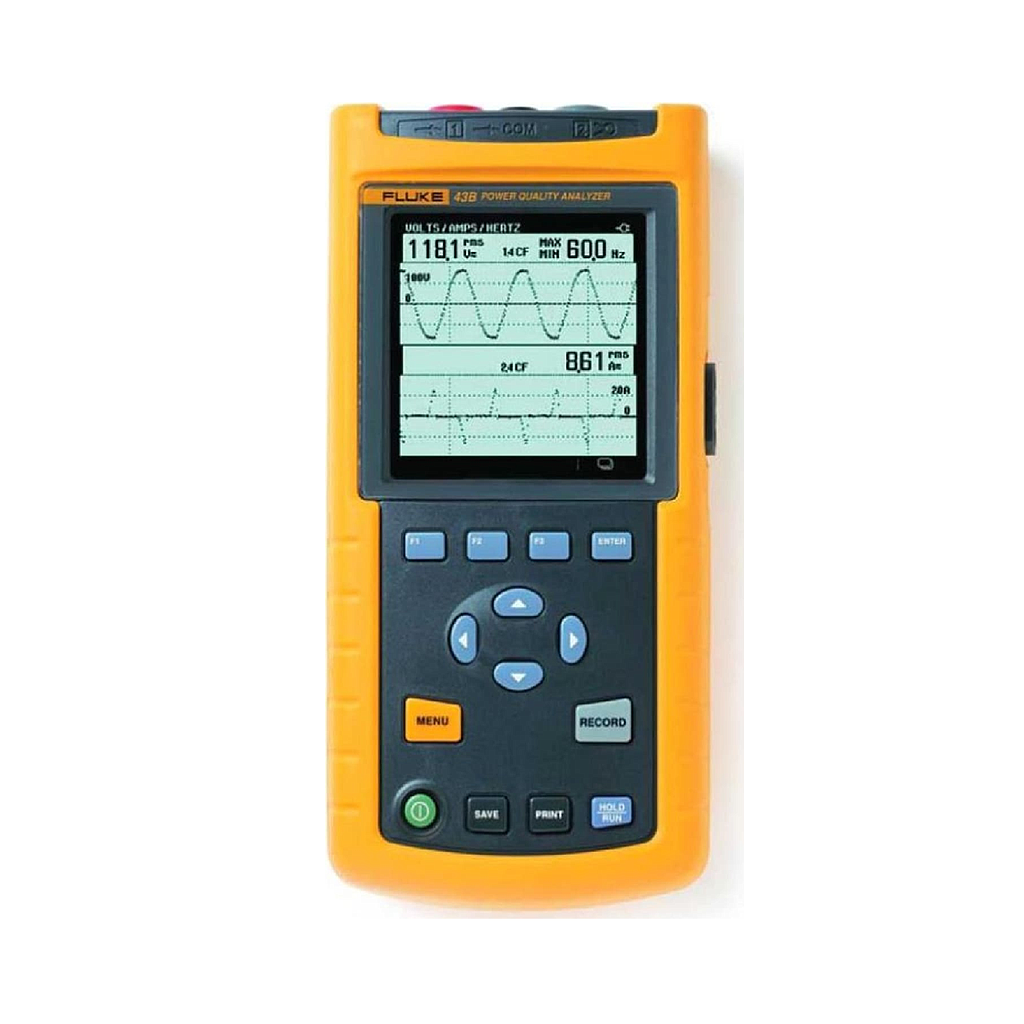

Fluke 43B Single Phase Power Quality Analyzer

Input impedance: 1 MΩ, 20 pF
Voltage rating: 600V rms, CAT III
V/A/Hz Display
-True-rms voltage (ac + dc): 5,000 V, 50,00 V, 500,0 V, 1250 V/±(1% + 10 counts)
- True-rms current (ac + dc): 50,00 A, 500,0 A, 5,000 kA, 50,00 kA, 1250 kA/ ±(1% + 10 counts)
- Frequency: 10,0 đến 15,0 kHz/ ± ([% số ghi] + [counts]): 0,5% + 2
- CF Crest factor: 1,0 - 10,0/ ±(5% + 1 count)
Power Display
- Watts, VA, VAR: 250 W - 1,56 GW/ ±(4% + 4 counts)
- Power Factor: 0 - 1,0/ ±0,04
- Displacement Power Factor, Cos .F: 0,25 - 0,9/±0,04; 0,90 - 1,0/±0,03
- Frequency Fundamental: 40,0 đến 70,0 Hz/ ± ([% số ghi] + [counts]): 0,5% + 2
Harmonics Display
- Frequency Fundamental: 40 Hz đến 70 Hz/ ±0,25 Hz
- Phase: V, A (Giữa bậc cơ bản & các sóng hài)/ ±3º đến ±15º
- K-factor: 1,0 đến 30,0/ ±10%
