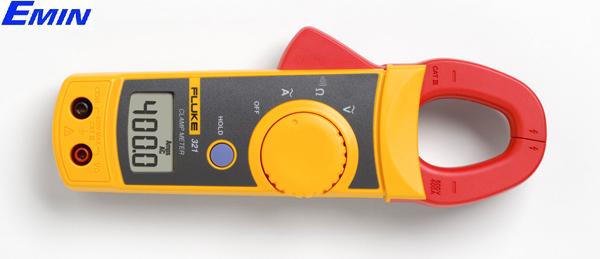

Fluke 321 Clamp Meter

Range:

0 - 400 V (Fluke 322 only)

Resolution:

0.1 V

Range:

0 - 600 V (Fluke 322 only)

Resolution:

1 V

Accuracy:

1% ± 5 counts

Range:

0 - 400 V

Resolution:

0.1 V

Range:

0 - 600 V

Resolution:

1 V

Accuracy:

1.2% ± 5 counts (50 - 400 Hz)

AC Response:

Averaging

Range:

0 - 400 A

Resolution:

0.1 A

Range:

0 - 40 A (Fluke 322 only)

Resolution:

0.01 A

Accuracy:

1.8% ± 5 counts (50 - 60 Hz)

Accuracy:

3.0% ± 5 counts (60 - 400 Hz)

AC Response:

Averaging

Range:

0 - 400 Ω

Resolution:

0.1 Ω

Accuracy:

1% ± 5 counts

<= 30 Ω

-10°C to +50°C

-30 ºC to +60 ºC

2,000 meters

Add 0.1 x specified accuracy for each ºC above 28ºC or below 18ºC

190 x 63 x 35 mm

230 g

Two years

100 hours typical (2 AAA carbon zinc)

25 mm
