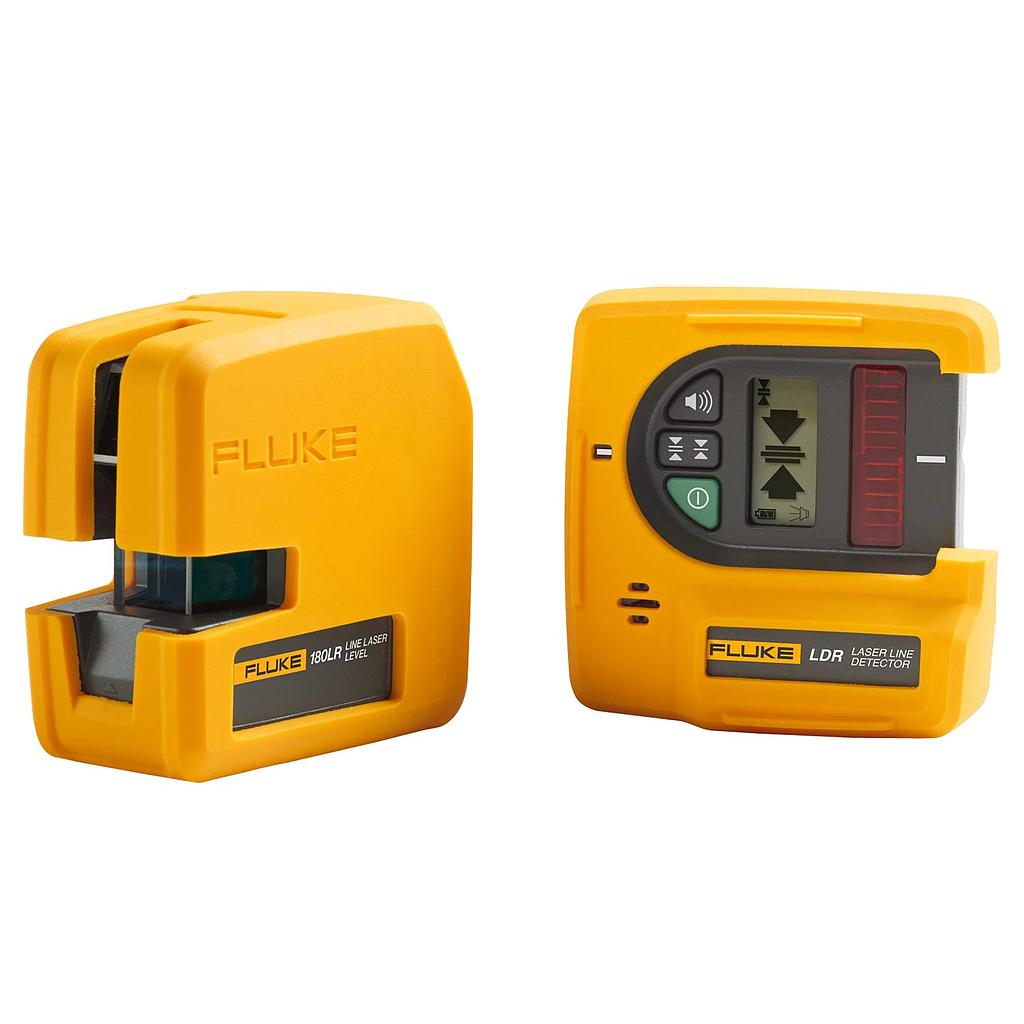

FLUKE 180LR Laser Level Detector System

Light source: Semiconductor laser diode

Leveling range: ≤6°

Leveling: Automatic

Working range: ≤60 m

Accuracy: ≤3 mm @ 10 m

Batteries: 3 x AA Alkaline IEC LR6

Battery life: ≥35 hrs, continuous use with single beam

Dimensions (H x W x L): 93 x 61 x 93 mm

Weight (with batteries): 0.50 kg

Operating temperature: -18 °C to +50 °C

Storage temperature: -40 °C to +70 °C

With batteries: -20 °C to +50 °C

Relative humidity: 25% to 80% (10 °C to 30 °C)

Operating altitude: 2000 m

Storage altitude: 12000 m

General: IEC 61010-1: Pollution Degree 2

Laser: IEC/EN 60825-1:2014 Class 2

Max output power: <3 mW

Wavelength: 635 nm
