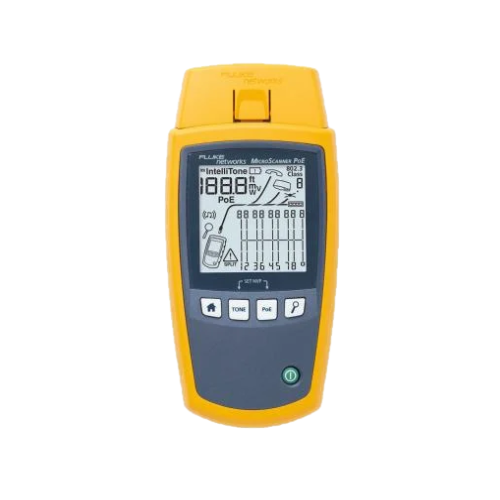

Fluke Network MS-POE-IE Industrial Ethernet Cable Verifier

Operating temperature: 32 °F to 113 °F (0 °C to 45 °C)

Storage temperature: -4 °F to +140 °F (-20 °C to +60 °C)

Operating relative humidity (% RH without condensation): 90 % (50 °F to 95 °F 10 °C to 35 °C)

75 % (95 °F to 113 °F 35 °C to 45 °C)

Shock and Vibration: Random, 2 g, 5 Hz-500 Hz (Class 2)

1 m drop test with and without wiremap adapter attached

Power: Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries

Battery life: 20 hours of typical use

Other compatible battery types: 2 AA photo lithium, NIMH, NICAD

Dimensions and weight (with batteries installed and wiremap adapter attached): 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)

MicroScanner™ PoE: 10.6 oz (300 g)

Display: Monochrome LCD with backlight

Cable types tested: Twisted pair: UTP, FTP, SSTP

Length test: Range: 460 m (1500 ft)

Resolution: 0.3 m (1 ft)

Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error.

Calibration: User-settable NVP for twisted pair. Can determine actual NVP with known length of cable.

Wiremap test: Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs.
