Fluke Network LIQ-KIT Cable+Network Tester Advanced Kit

Languages supported in UI: English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese

Weight: 1 lbs 6 oz (624g)

Battery:

Type: Lithium-ion, 3.6 V, 6400 mAh

Life: 8 hours typical

Charge time: 4.5 hours

Charging temperature range: 0 °C to +40 °C

Power Adapter:

Input: 100 to 240 VAC ±10%, 50/60Hz

Output: 15 VDC, 2 A maximum Class II

Host Interface: USB type C

Display: 800 x 480 color capacitive multi-touch

Dimensions: 8.5 in x 4.5 in

Operating Temperature: 0°C to 45°C

Storage Temperature: -10°C to +60°C

Operating Relative Humidity:

0 % to 90 %, 0°C to 35°C

0 % to 70 %, 35°C to 45°C

Operating Altitude: 4,000 m, 3,200 m with ac adapter

Vibration: Random, 2 g, 5 Hz-500 Hz

Drop: 1 m drop, 6 sides

Active Network Diagnostics

Feature

Diagnostic Protocols: Link Layer Discovery Protocol (LLDP)

Cisco Discovery Protocol (CDP)

Fast Link Pulses (FLP)

Internet Control Messaging Protocol (ICMP), Dynamic Host Configuration Protocol (DHCP)

IP Address Setup: LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP

IP Ping Test Results: Four response time results for target, DNS Server(s), Gateway, plus average and number lost

Power Over Ethernet Compatibility: Ethernet Alliance Certified to IEEE 802.3af/at/bt,

Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP

Power Over Ethernet Measurements:

Loaded Voltage (V)

Loaded Power (W)

Port Blink: Blink the light of the connected port

Cable Test Specifications

Feature

Test Port: Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs.

Commissioning Autotests: 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only.

Test Speed: 6 seconds for lengths < 70 m

Cable Types: Balanced twisted-pair cabling

Unshielded twisted-pair

Screened twisted-pair

2-pair and/or 4-pair

Wire Map-Only Tests:

Document wire map

Length of each pair

Diagnose split pairs

User selectable T568A or T568B

User selectable crossover settings (Straight through, Half-crossover, Full-crossover)

Test speed: 1 second for lengths < 120 m

Length (Maximum): 305 m (1000 ft)

Nominal Velocity of Propagation (NVP): User settable

Tone Generator: Generates digital tones compatible with Fluke Networks IntelliTone probe.

Generates analogy tones compatible with general analog probes.

Remote ID Locators: Use remote ID terminations to identify up to 7 unique ports or office outlets

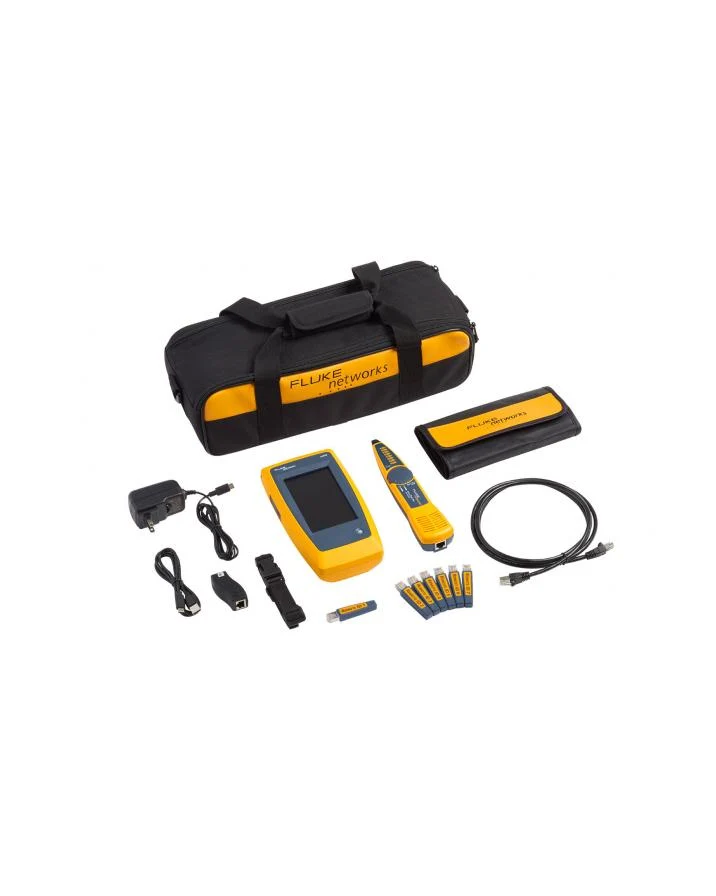

Includes:

LinkIQ™ Main Unit

Remote ID #1-7

RJ45-RJ45 patch cord

AC charger

RJ45/11 universal coupler

IntelliTone(TM) Pro 200 Probe

Duffel bag carrying case

Datasheet

Manual
