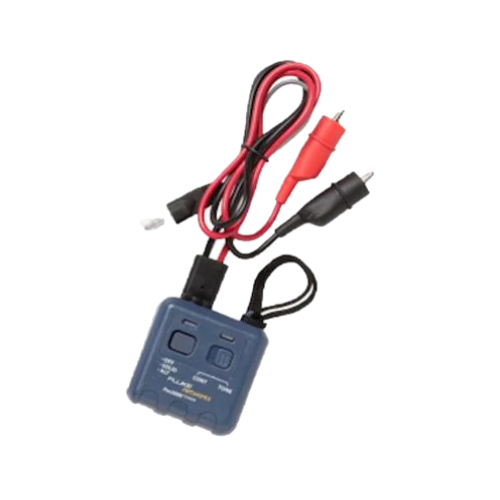

Fluke Network 262003AL Tone Generator with Alligator Clips and RJ11 Plug

User interface: Slide switch selects Continuity or Tone Mode

Push button switch selects SOLID, ALT or OFF

Tone mode LED

Continuity/Polarity LED

Solid Frequency: 1000 Hz nominal

Alternating Frequency: 1000/1500 Hz nominal

Over Voltage Protection: 60 Vdc in Toner/Polarity Mode

Output Power in Tone Mode: 8 dBm into 600 ohms

Output Voltage Level in Continuity Mode: 8 Vdc with fresh battery

Battery: 9V alkaline

Temperature: Operating: -20° C to 60° C, Storage: -40° C to 70° C

Case dimensions: 2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm)

Datasheet
