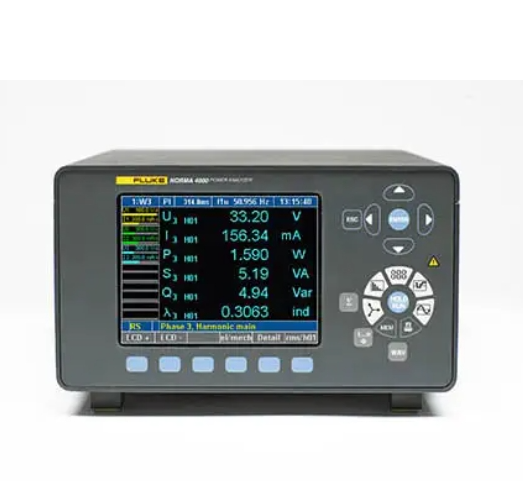

FLUKE FLUKE-N4K 1PP54 Single Phase Power Analyzer (1 Phase, PP54 Module, DC to 3 MHz / 10 MHz)

Number of Phases: 1 to 3

On-Board Printer: No

Display: Color: 144 mm (5.7")

320 x 240 px

User-selectable background lighting and contrast

Bandwidth: DC to 3 MHz or DC to 10 MHz depending on input module

Basic Accuracy: 0.2%, 0.1% or 0.03% depending on input modules

Sampling Rate: 0.33 MHz or 1 MHz depending on input modules

Voltage Input Range: 0.3 to 1000V

Current Input Range (direct, not via shunt): 0.03 mA to 20 A depending on input module

Memory for Configurations: 4 MB

Memory for Settings: 0.5 MB

Fast Fourier Transformation (FFT): To the 40th Harmonic

RS232/USB Interface: Standard

Weight: Approx. 5 kg (11 lbs)

Size: 150 x 237 x 315 mm (5.9 x 9.3 x 12.4")

Included: Fluke N4K 1PP54 Norma 4000 Single Phase Power Analyzer with PP54 Module

Manual
