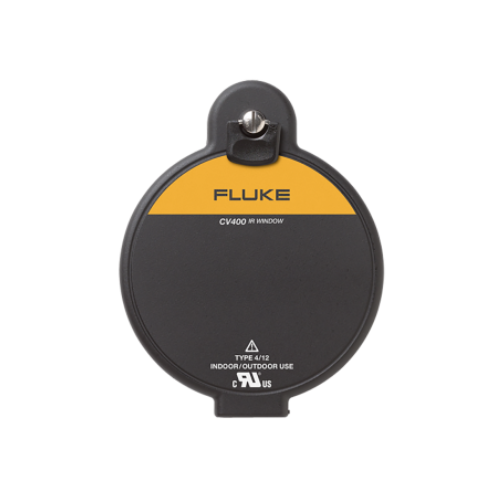

General Specifications
Size: 95 mm (4 in)
Voltage range: Any
NEMA environment type: Type 4/12 (indoor/outdoor)
Operating temperature: -40°C to +232°C (-40° F to +450°F) and +260°C (500°F) intermittent
Compatible with all Fluke cameras: Yes
Jam nut locking system: Yes
Cover and fastener permanently attached: Yes
Single-hole install: Yes
Hand turn and security key door latch options: Yes
Visual inspection and fusion capable: Yes
Short/Mid/Long-wave IR and UV capable: Yes
Ratings and Testing
CSA type rating: Type 4
IP rating: IP67 at TUV
Install
Actual mounting hole diameter required: 115.42 mm (4.544 in)
Overall window height: 189.3 mm (7.45 in)
Overall window width: 147.1 mm (5.79 in)
Overall window thickness: 23.0 mm (0.90 in)
Door latch: Hand Turn
Optics
Optic insert diameter: 95 mm (3.74 in)
Viewing aperture diameter: 87.63 mm (3.450 in)
Viewing aperture area: 6032 mm2 (9.35 in2)
Thickness: 4 mm (0.16 in)
