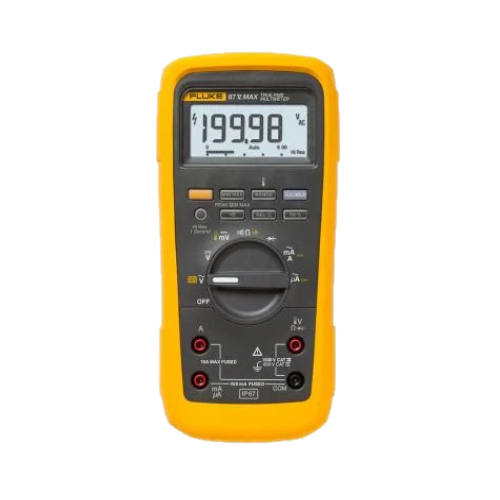

FLUKE Fluke 87V MAX CAL Digital Multimeter (True RMS, 1000V, 10A)

DC Voltage:

Range: 0.1 mV to 1000 V

Accuracy: ±(0.05% + 1)

Maximum resolution: 0.1 mV

AC Voltage:

Range: 0.1 mV to 1000 V

Accuracy: ±(0.7% + 4) true-rms

AC bandwidth: 20 kHz with low pass filter; 3 dB @ 1 kHz

Maximum resolution: 0.1 mV

DC Current:

Range: 0.1 μA to 10 A (20 A for 30 seconds maximum)

Amps accuracy: ±(0.2% + 2)

Maximum resolution: 0.1 µA

AC Current:

Range: 0.1 μA to 10 A (20 A for 30 seconds maximum)

Amps accuracy: ±(1.0% + 2) true-rms

Maximum resolution: 0.1 µA

Resistance:

Range: 0.1 Ω to 50 MΩ

Accuracy: ±(0.2% + 1)

Maximum resolution: 0.1 Ω

Capacitance:

Range: 0.01 nF to 9999 μF

Accuracy: ±(1% + 2)

Maximum resolution: 0.01 nF

Frequency:

Range: 0.5 Hz to 199.99 kHz

Accuracy: ±(0.005% + 1)

Maximum resolution: 0.01 Hz

Duty cycle:

Maximum duty cycle: 99.9%

Accuracy: ±(0.2% per kHz + 0.1%)

Maximum resolution: 0.1%

Temperature measurement range: –200.0 °C to 1090 °C –328.0 °F to 1994.0 °F excluding probe 80

BK temperature probe: –40.0 °C to 260 °C, ± 2.2 °C or 2% whichever is greater –40.0 °F to 500 °F, ± 4.0 °F or 2% whichever is greater

Conductance:

Maximum conductance: 60.00 nS

Accuracy: ±(1.0% + 10)

Maximum resolution: 0.01 nS

Diode test:

Range: 2 V

Resolution: 0.001V

Accuracy: ±(1% + 1)

Diagnostics and data storage:

Peak Min/Max: 250 μS

Min/Max/Avg: Yes

Reading hold/Auto (Touch) Hold: Yes

Relative reference: Yes

Display:

Digital: 6000 counts updates 4/second; 19,999 counts in high–resolution mode

Analog bar graph: 32 segments, updates 40/second

Backlight: Two level

Low pass filter (VFD measurements): Yes

Input Alert™: Yes

Safety Specifications

Safety rating: IEC61010-1: Pollution Degree 2 IEC 61010-2-033: CAT IV 600 V, CAT III 1000 V

Agency approvals: CE, CSA

Mechanical and General Specifications

IP rating: IEC 60529: IP67

Power: Three AA batteries. 800 hours typical, without backlight

Size: 6.0 x 10.1 x 21.5 cm (with holster)

Weight: 698.5 g (with holster)

Operating temperature: -15 °C to 55 °C, to -40 °C for 20 minutes when taken from 20 °C

Storage temperature: -40 °C to + 60 °C

Humidity (without condensation): 0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C)

Operating altitude: 2000 m

Includes:

TL175 TwistGuard® test leads

AC175 Alligator clips

80BK-A temperature probe

Removable holster with test lead storage

Three AA batteries (installed)
