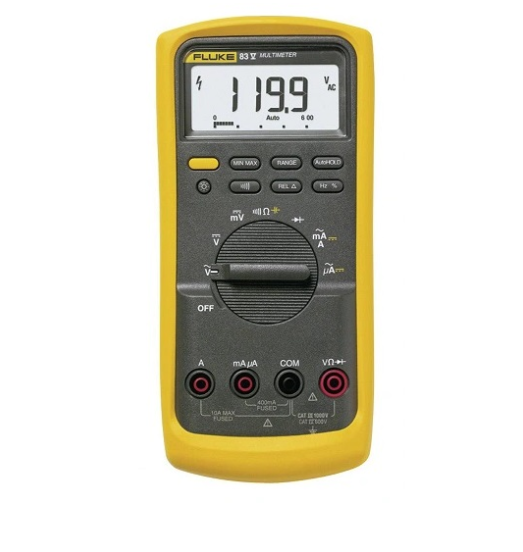

FLUKE FLUKE-83-5 Digital Multimeter (Fluke-83V, 0.1%) | EMIN.MY

FLUKE FLUKE-83-5 Digital Multimeter (Fluke-83V, 0.1%)

Name: FLUKE FLUKE-83-5 Digital Multimeter (Fluke-83V, 0.1%)
Brand: FLUKE
Price: 548.77 USD
Availability: OutOfStock

ManufacturerFLUKE(View more products from this manufacturer)

ModelFLUKE-83-5

P/N2075004

OriginUSA

USD 548.77

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Voltage DC	Maximum voltage	1000 V
	Accuracy	±(0.1% + 1)
	Maximum resolution	100 µV
Voltage AC	Maximum voltage	1000 V
	Accuracy	±(0.5% + 2)
	Maximum resolution	0.1 mV
Current DC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(0.4% + 2)
	Maximum resolution	0.01 mA
Current AC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(1.2% + 2)
	Maximum resolution	0.1 µA
Resistance	Maximum resistance	50 MΩ
	Accuracy	±(0.4% + 1)
	Maximum resolution	0.1 Ω
Capacitance	Maximum capacitance	9,999 µF
	Accuracy	±(1% + 2)
	Maximum resolution	0.01 nF
Frequency	Maximum frequency	200 kHz
	Accuracy	±(0.005% + 1)
	Maximum resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.9%
	Accuracy	±(0.2% per khz + 0.1%)
	Maximum resolution	0.1%
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Diode	Range	3 V
	Resolution	1 mV
	Accuracy	±(2% + 1)
Duty cycle range	Accuracy	within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature	–20°C to +55°C
Storage temperature	–40°C to +60°C
Humidity (without condensation)	0% – 90% (0°C – 35°C) 0% – 70% (35°C – 55°C)
Operating altitude	2000 m
Safety Specifications
Overvoltage category	EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals	CSA, TÜV
Mechanical and General Specifications
Display	Digital	6000 counts updates 4/sec
	Analog	32 segments, updates 40/sec
	Frequency	19,999 counts, updates 3/sec at > 10 Hz
Size	201 x 98 x 52 mm (with holster)
Weight	355 g
Weigh with holster and flex–stand	624 g
Warranty	Lifetime
Battery life	Alkaline~400 hours typical, without backlight
Shock	1 Meter drop per IEC 61010–1:2001
Vibration	Per MIL–PRF–28800 for a Class 2 instrument
