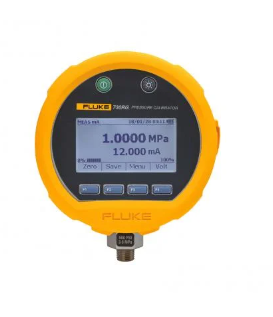

FLUKE FLUKE-730G31 High-precision Digital Piezometer (10000 PSIG)

Range: -14 to 10000 psi/ -0.97 to 690 bar/ -97 to 69 MPa

Resolution: 1 psi/ 0.01 bar/ 1 kPa

Accuracy: Positive pressure, ± 0.05 % of range Vacuum, ± 0.1 % of range

Pressure: 15000 psi/ 1035 bar/ 103.421 MPa

Electrical specifications (All specifications are valid to 110% of range)

Range

Current: 0 mA to 24 mA

Voltage: 0 V DC to 30 V DC

Resolution

Current range: 1 μA

Voltage range: 1 mV

Accuracy: 0.01 % ± 2 LSD all ranges @ 23 °C±5 °C

Temperature compensation: From 20 % FS / °C @ -10 °C to +18 °C and 28 °C to 50 °C

Loop Compliance Voltage: 24 V DC @ 20 mA

Temperature measurement accuracy inside the product: ±0.5 °C

Drive Capability: 1200 Ω (without HART resistor), 950 Ω (with internal HART resistor)

Mechanical specifications

Dimensions (H x W x L): 155 mm x 130 mm x 44 mm (6.1” x 5.1” x 1.7”)

Weight: 850g (1.87 lb)

Included

• Pressure calibrator

• Lithium-ion battery pack

• AC power supply/battery charger

• Universal power adapter (not available in all countries)

• Test lead set

• 1/4 in NPT-Female x M20-Male fitting

• 1/4 in NPT-Female x 1/4 in BSP-Male fitting

• Red alligator clip

• Black alligator clip

• USB cable

• Traceable calibrator report
