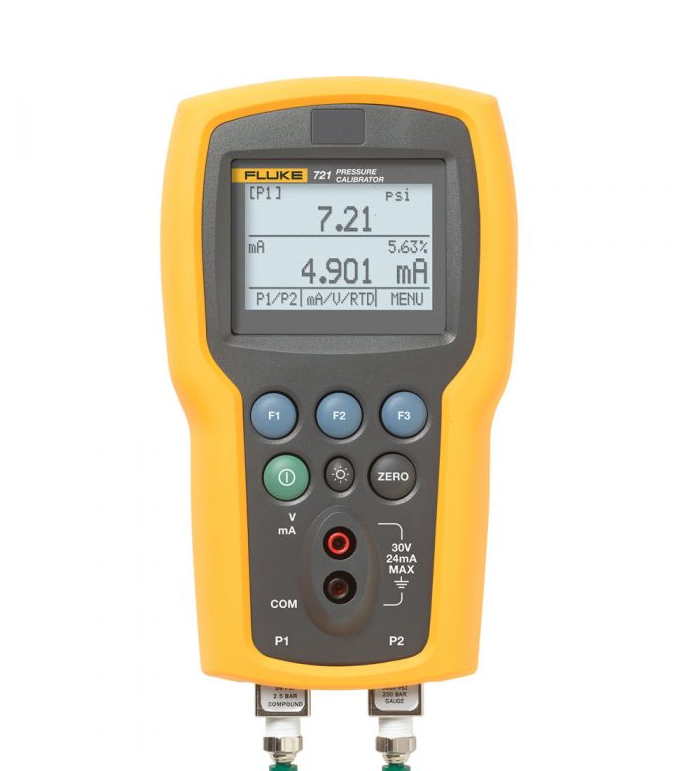

FLUKE FLUKE-721-1615 Precision Pressure Calibrator (16 psig, 1500 psig)

- Low pressure sensor

+ -14 psi to +16 psi, -0.97 bar to 1.1 bar

+ Accuracy: 0.025 % of full scale

- High pressure sensor

+ 0 psi to +1500 psi, 0.00 bar to 103.4 bar

+ Accuracy: 0.025 % of full scale

- mA measure:

+ Range: 0 to 24 mA

+ Resolution: 0.001 mA

+ Accuracy: ±0.015% of rdg ±0.002mA

- VDC measure:

+ Range: 0 to 30 VDC

+ Resolution: 0.001V

+ Accuracy: ±0.015% of rdg ±0.002V

- Temperature measure (RTD/ Ohms)

+ Range: -40 °C to 150 °C (-40 °F to 302 °F)

+ Resolution: 0.01 °C, 0.01 °F

+ Accuracy: ±0.015% of rdg, ±0.02 ohms

- Loop power supply: 24V

Batteries: (4) Standard AA cells

Dimensions: 20 cm X 11 cm X 5.8 cm

Includes:

Soft case

Four (4) AA batteries

Manual

Traceable calibration certificate

Test leads
