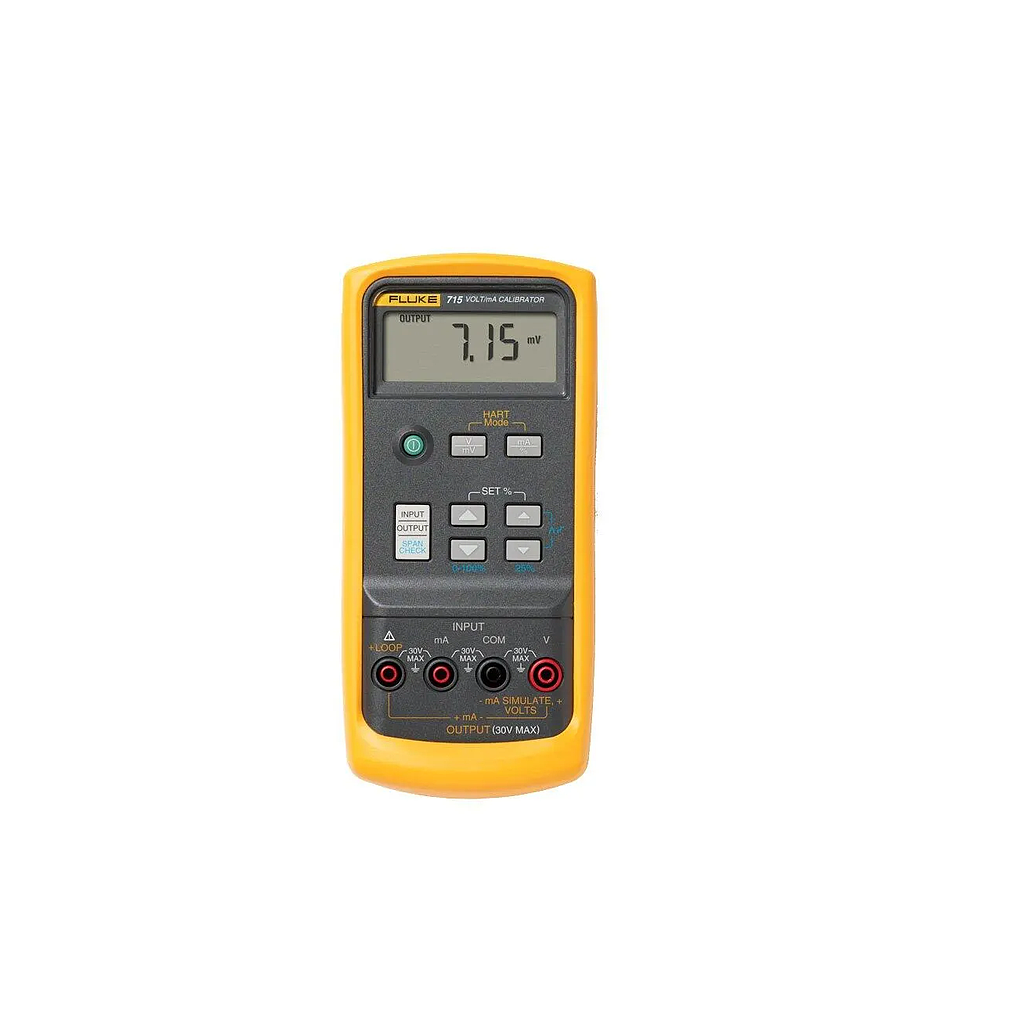

FLUKE FLUKE-715/APAC Volt/mA Loop Calibrator (measure and source 0 - 20 V, 0 - 24 mA)

1. Voltage measurement :

- Range : 0 - 200 mV / 0 - 25 V

- Resolution : 10 μV / 1 mV

- Accuracy : 0.01 % Rdg + 2 counts

2. Current measurement :

- Range : 0 mA to 24 mA

- Resolution : 0.001 mA

- Accuracy : 0.01 % + 2 counts

- Loop power while measuring mA : 24 VDC

3. Current sourcing :

- Range : 0 mA to 20 mA (optional) or 4 mA to 20 mA (standard)

- Accuracy : 0.01 % Rdg + 2 counts

4. Voltage sourcing :

- Dải đo : 0 mV to 200 mV or 0 V to 20 V

- Độ chính xác : 0.01 % Rdg + 2 counts

4. General Specifications :

- Maximum voltage: 30 volts

- Non-operating temperature: –4 °C to 60 °C

- Operating temperature: –10 °C to 55 °C

- Relative humidity: 95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C); 45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C)

- Power: 9 V battery (Source mode: 18 hours; 12 mA into 500 Ω; measure/simulate Mode: 50 hours)

- Size : With holster and Flex-Stand: 52 mm H x 98 mm W x 201 mm L

- Weight : With holster and Flex-Stand: 601 g

Includes:

Protective yellow holster with test lead storage

Instructions sheet (14 languages)

Single 9V alkaline battery

Test leads and alligator clips
