FLUKE FLUKE-700LTP-1 Low-Pressure Test Pump

Size (L x W x D): 5.9 x 4 x 1.25 in (150 x 100 x 32 mm)

Weight: 226 g or .5 lbs (pump only)

Material: Exposed Materials: Aluminum, silicon, neoprene, stainless steel, Buna-N

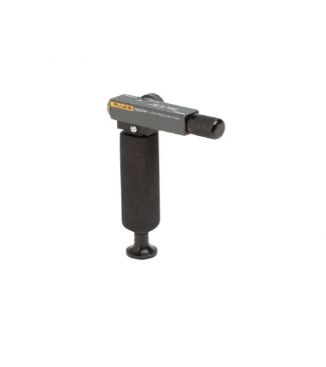

The Fluke 700LTP-1 is a hand operated pressure pump designed to generate either vacuum to -12.7 PSI / -.87 bar or

pressures to 100 psi / 6.9 bar. The Fluke 700LTP-1 has two pressure ports with quick fit connectors. Test hoses are

terminated with 1/8-NPT female fittings that can be adapted using the BSP/ISO adapters.

For use with 700 series pressure modules and 717 pressure calibrators. Ideal for low pressure applications requiring

accurate low pressure testing.
