FLUKE FLUKE-179/EDA2 Digital Multimeter and Accessories Kit (1000VDC/AC, 10ADC/AC)

Specifications

Voltage DC:

+ Accuracy: ±(0.09% + 2)

+ Max. resolution: 0.1 mV

+ Maximum: 1000 V

Voltage AC:

+ Accuracy: ±(1.0% + 3)

+ Max. resolution: 0.1 mV

+ Maximum: 1000 V

Current DC:

+ Accuracy: ±(1.0% + 3)

+ Max. resolution: 0.01 mA

+ Maximum: 10 A

Current AC:

+ Accuracy: ±(1.5% + 3)

+ Max. resolution: 0.01 mA

+ Maximum: 10 A

Resistance:

+ Accuracy: ±(0.9% + 1)

+ Max. resolution: 0.1 Ω

+ Maximum: 50 MΩ

Capacitance:

+ Accuracy: ±(1.2% + 2)

+ Max. resolution: 1 nF

+ Maximum: 10.000 µF

Frequency:

+ Accuracy: ±(0.1% + 1)

+ Max. resolution: 0.01 Hz

+ Maximum: 100 kHz

Temperature:

+ Accuracy: ±(1.0% + 10)

+ Max. resolution: 0.1°C

+ Range: -40°C / 400°C

Environmental Specifications

Operating temperature: -10°C to +50°C

Storage temperature: -30°C to +60°C

Humidity (without condensation): 0% - 90% (0°C - 35°C); 0% - 70% (35°C -50°C)

Safety Specifications

Overvoltage category: EN 61010-1 to 1000 V CAT III; EN 61010-1 to 600 V CAT IV

Agency approvals: UL, CSA, TÜV listed and VDE Pending

Mechanical and General Specifications

Size: 43 x 90 x 185 mm

Weight: 420 g

Battery life: Alkaline ~200 hours typical, without backlight

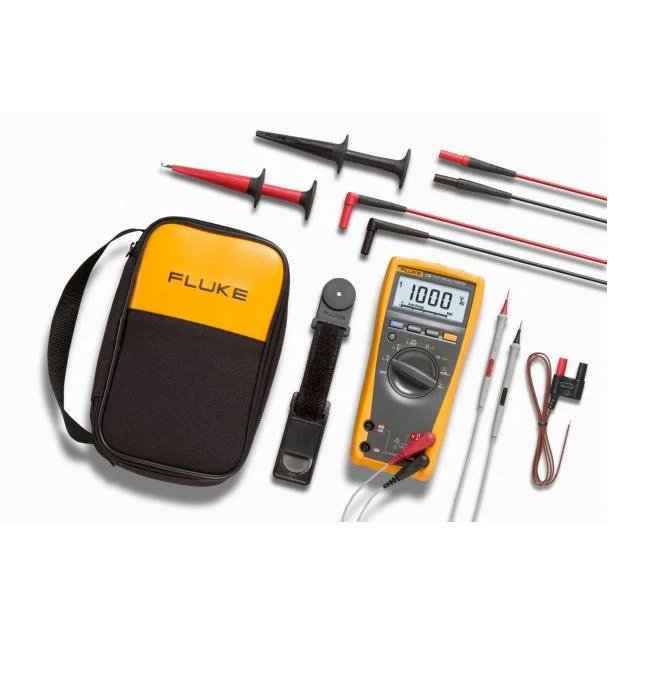

Includes:

Fluke 179 Multimeter

80BK-A Integrated DMM Temperature Probe

Installed 9V battery

Users’ manual

AC280 SureGrip™ Hook Clips

TL910 Electronic Test Probes

TL224 SureGrip™ Insulated Test Leads

TPAK ToolPak™ Magnetic Meter Hanger

Soft carry case

Datasheet
