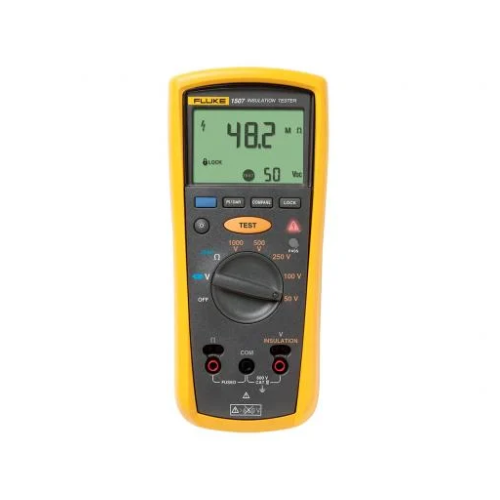

FLUKE Fluke 1507 CAL Insulation Resistance Tester (1000 V)

- AC/DC Voltage Measurement

+ 600.0 V /0.1 V /± 2 % + 3dgt

- Earth bond resistance measurement

+ 20.00 Ω, 200.0 Ω, 2000 Ω, 20.00 kΩ /± 1.5 % + 3 dgt

- Insulation specifications

+ Measurement Range: 10.01 MΩ to 10 GΩ

+ Test voltage: 50 V, 100 V, 250 V, 500 V, 1000 V /+ 20 %

+ Measure Accuracy: 50 V: ±(3 % + 5)

100 V: ±(3 % + 5)

250 V: ±(1.5 % + 5)

500 V: ±(1.5 % + 5)

1000 V:±(1.5 % + 5) to 2000 MΩ, ±(10 % + 3) above 2000 MΩ

Size: 5.0 cm H x 10.0 cm W x 20.3 cm L

Weight: 550 g (1.2 lb)

IP Rating: IP40

Includes:

Remote probe

Test leads

Test probes

Alligator clips

User documentation

 Manual
