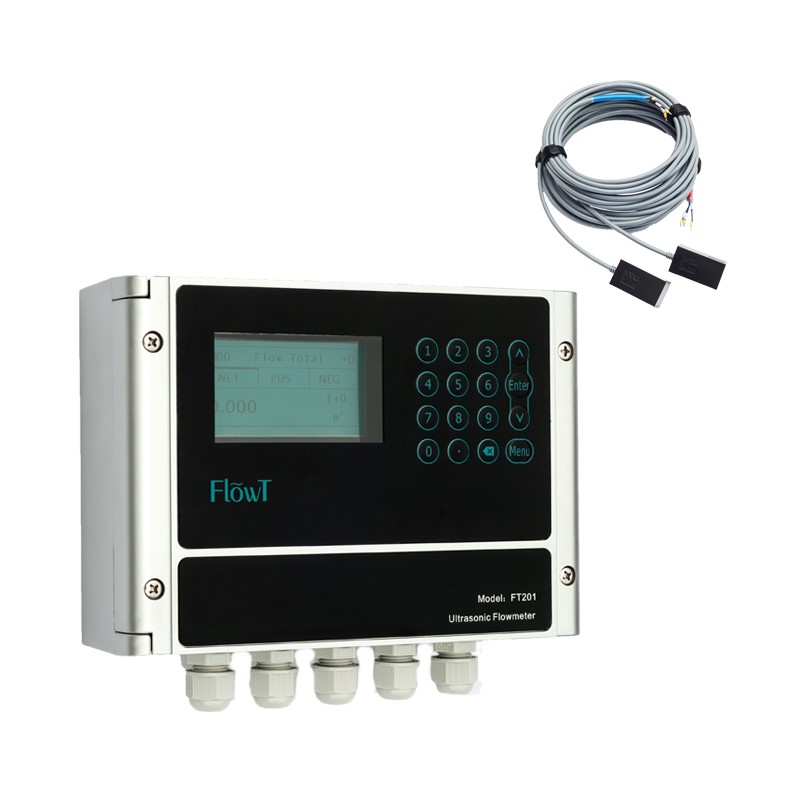

FlowT FT201 Ultrasonic Flow Meter (±0.09ft/s ~ ±16ft/s)

Performance

Flow range: ±0.09ft/s ~ ±16ft/s (±0.03m/s ~ ±5m/s)

Accuracy: ±1% of measured value

Repeatability: 0.2% of measured value

Linearity: ±1%

Pipe size: 1"to 48" (25mm to 1200mm).Pipe size under 1” is an option

Fluid: Water

Function

Outputs: Analog output: 4~20mA, max load 750Ω.

Pulse output: 0~10KHz

Communication: RS232/RS485 Modbus

Power supply: 10~36VDC/1A

Display: 240*128 back lit LCD

Temperature: Transmitter: -14℉~140℉(-20℃~60℃)

Transducer:-40℉~266℉(-40℃~130℃，standard -40℃~75℃)

Humidity: Up to 99% RH,non-condensing

Physical

Transmitter: PC/ABS,IP65

Transducer: ABS,IP68

Encapsulated design

Double-shielded transducer cable

Standard/maximum cable length:30ft/900ft(9m/274m)
