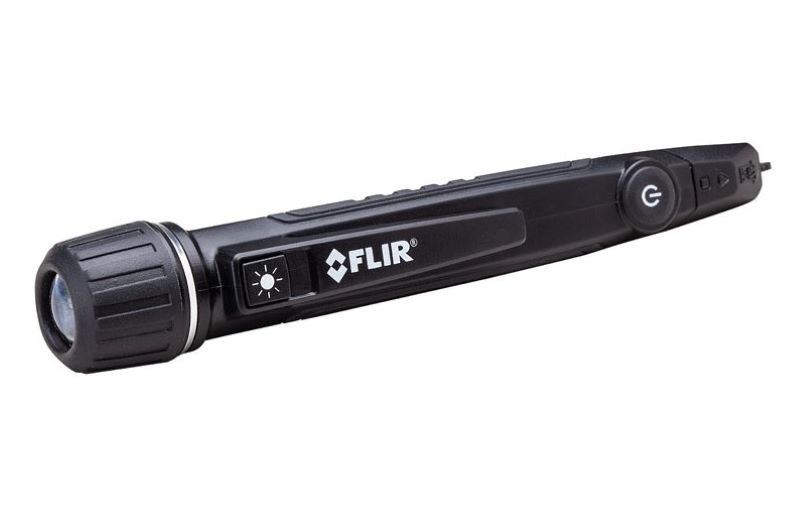

FLIR VP52 Non-Contact Voltage Detector + Worklight

AC Voltage Range (default, solid green light): 190 to 1000 V AC

AC Excitation Voltage / Distance: 190 V AC minimum / 1 cm (0.4 in)

Frequency Range: 45 to 65 Hz

High-Sensitivity Mode (solid amber light): 24 to 1000 V AC

Meter Data

Flashlight: Yes

Tip Light: Yes

Category Rating: CAT IV-1000 V

General Information

Certifcations: UL, cUL, CE, RCM

Power System

Power Requirements: 2 × AAA alkaline batteries

Battery Life: ~7 hours continuous (flashlight off)

Low Battery Voltage: Status LED flashes amber color

Auto Power Off After : 3 minutes of inactivity

Environmental Data

Drop Test: 3 m (9.8 ft)

Operating Ambient Temperatures: 0 to 60°C (-32 to 140°F)

Storage Temperature: -40 to 90°C (-40 to 194°F)

Physical Data

Weight: 0.20 kg (0.44 lb), including batteries

Dimensions: (H × W × L) 29 × 26 × 156 mm (1.1 × 1 × 6.1 in)

Unit Included
- VP52 CAT IV Vibrating non-contact voltage detector + flashlight
- 2 AAA batteries
- User manual

Datasheet
