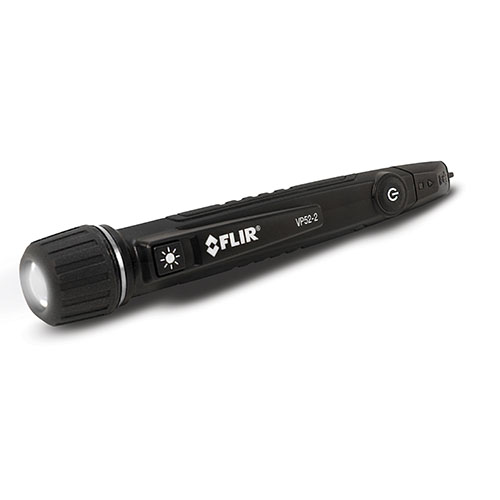

FLIR VP52-2 Non-contact voltage detector (24~1000V AC)

Dimensions (H x W x L): 29 mm × 26 mm × 156 mm (1.1 in × 1.0 in × 6.1 in)

Weight: 59 g (2.1 oz) including batteries

Alarm Notification: Sound, Flashing LED, Vibration

ENVIRONMENTAL

Ambient temperature range for operation: -10 to 50°C (14 to 122°F)

Drop test: 3 m (9.8 ft)

Storage Temperature: -20 to 60°C (-4 to 140°F)

Vibrating Indication: Yes

FLASHLIGHT

Flashlight: Yes

MEASUREMENT & ANALYSIS

Category Rating: CAT IV-1000 V

Frequency Range: 45 to 65 Hz

High Sensitivity Mode: 24 to 1000 V AC

AC Voltage Range: 190 to 1000 V AC

OTHER

Tip Light: ye

PHYSICAL FEATURES

Dimensions (L x W x H): 158.5 x 26 × 29 mm (6.24 x 1.02 x 1.14 in)

POWER

Battery life: ~5 hours continuous (flashlight off)

Power Requirements: 2 × AAA alkaline batteries
