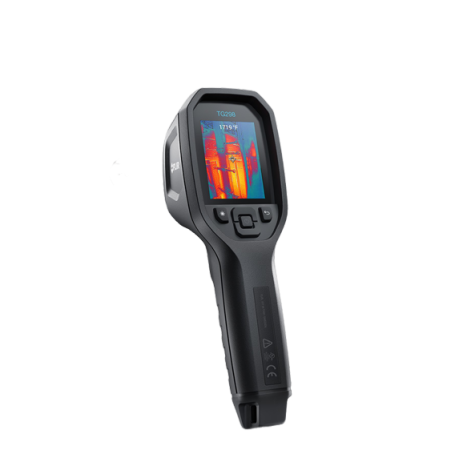

FLIR TG298 Spot IR Thermal Imaging Camera (−25°C ~ 1080°C, 30:1)

Imaging and Optical

IR Resolution: 160x120

Super Resolution: 320 × 240

MSX: Yes

Thermal Sensitivity/NETD: <50 mK or <0.05°C (0.09°F)

Field of View (H x V): 44° × 57°

Distance: Spot Size Ratio: 30:1

Color Palettes: Iron, Rainbow, White Hot, Black Hot, Arctic, Lava

Display: 2.4” color LCD, 320 × 240 pixels

Spectral Range: 7.5 − 14 µm

Measurement and Analysis

Object Temperature Range: −25°C to 1080°C (−13°F to 1976°F)

Center Spot: Yes

Dual Range: Yes

Spotmeter: Measures temperature at the center of the image, indicated by laser pointer

Minimum Focus Distance: 0.5 m (1.6 ft)

Minimum Measurement Distance: 0.26 m (0.85 ft)

Video Recording: Yes

Emissivity Correction: 4 pre-set levels with custom adjustment of 0.1 – 0.99

Contact Measurement: _

Type-K Range: _

Type-K Accuracy: _

Power

Battery Operating Time: 5 hrs continuous scanning; 4.5 hrs with laser on

Battery Type: Rechargeable Li-ion battery

Battery Voltage: 3.7 V

Battery Charging System:  USB Type-C

Boot-Up Time: <10s
