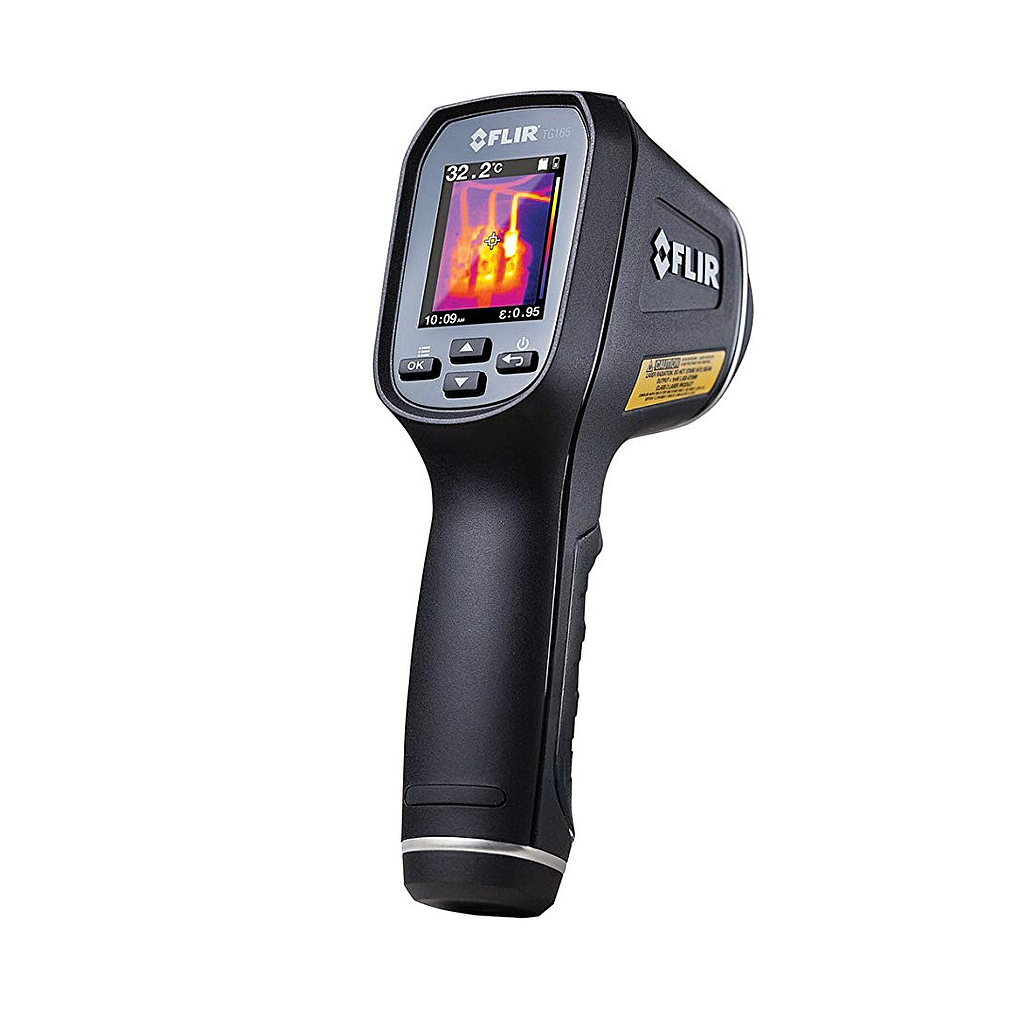

FLIR TG165 Imaging IR Thermometer (380°C, 80 x 60 Pixels)

- IR Temperature Measurement:
+ Basic Accuracy: +/- 1.5% or 1.5°C
+ Range: -25 to 380°C, -13 to 716°F
+ Emissivity: 4 Pre-Set Levels with Custom Adjustment, 0.1 to 0.99
+ Dist. to Spot Ratio: (D:S) 24:1
+ Measurement Resolution: 0.1 °C / °F
+ Response Time: 150 Milliseconds
+ Spectral Response: 8 to 14μm
+ Lasers: Dual Diverging Lasers, Frames Temp Measurement Area
- Thermal Imaging
+ Imaging Detector: FLIR Lepton™ Microbolometer Focal Plane Array (FPA)
+ Shutter :Integrated Automatic Shutter
+ Image Resolution (H x W): 4,800 Pixels (80 x 60)
+ Spectral Response: 8 to 14μm
+ Field of View (H x W): 50° x 38.6°
+ Upper Scene Range: 127°C, 260°F (400K)
+ Thermal Imaging Sensitivity: 150mK
+ Frame Rate: 9 Hz
+ Color Palettes 2 (Grey Scale, Hot Iron)
+ Saved Image Format Bitmap (BMP) Image with Temperature and Emissivity
- General
+ Unit Size: 86 x 55 x 94 mm)
+ Display : Type 2.0 in TFT LCD
+ Display Resolution (W x H) 38,720 Pixels (176 x 220)
+ Battery Rechargeable via Micro USB Lithium-ion Battery: 3.7V, 2600mAh
+Auto Power Off Yes, Adjustable with Disable
+ Battery Life Hours Typical Use: Five 8-Hr Work Days; Continuous Use: 8 Hrs
+ Memory 8Gb Micro SD Card
+ Includes: Lanyard, USB Cable, International Charger (US, UK, EU, AU, CN)
8 Gb Micro SD Card, Technical Documentation
