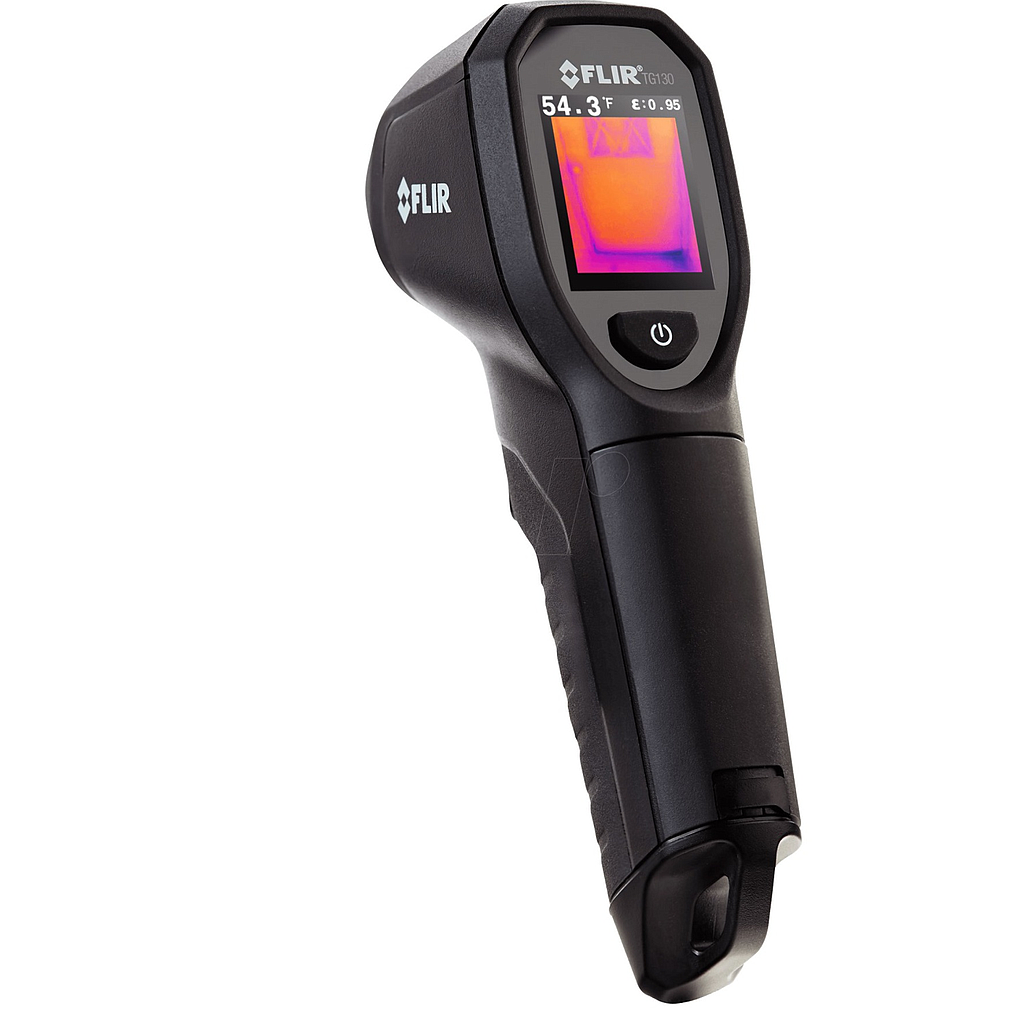

FLIR TG130 Spot Thermal Camera (150°C)

Imaging and optical data
- Field of view (FOV): 55° × 43°
- Minimum focus distance): 0.1 m (4 in.)
- Image frequency: 9Hz
- Focus: Focus free
- Detector type: Focal plane array (FPA), uncooled microbolometer
- Spectral range: 7.5 - 14 µm
- Display: 1.8 in. TFT LCD
Measurement
- Object temperature range: -10°C to +150°C (14 to 302°F)
- Center spot: Yes
- Color palettes: Hot Iron, Rainbow, Grayscale
- Emissivity Correction: No
General
- Battery Type: 3 × AAA (LR03)
- Battery Operating Time: 4 hours continuous scanning
- Power Management: Fixed, 5 min.
- Operating Temperature Range: -10°C to +45°C (14 to 113°F)
- Storage Temperature Range: -40°C to +70°C (-40 to 158°F)
- Encapsulation: IP 40 (IEC 60529)
- Drop Test: Designed for 2 m (6.6 ft.)
- Certifications: CE/PSE/EN/UL/CSA 60950-1
- Weight: 0.21 kg (0.46 lb.)
- Size (L x W x H): 169 mm × 113 mm × 48 mm (6.6 in. × 4.4 in. × 1.9 in.)
Unit included:
- Thermal Camera
- Lanyard
- 3 × AAA batteries
