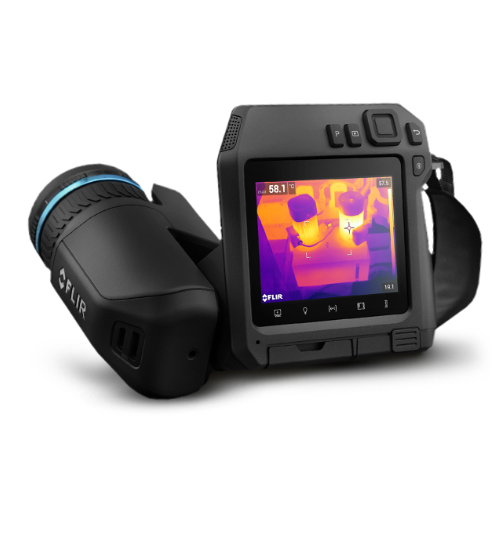

FLIR T530-24 Thermal Camera (-20°C~120°C, 0°C~650°C)

IR Resolution: 320 x 240 (76,800 pixels)

UltraMax® Resolution: 307,200 effective pixels

Object Temperature Range:

-20°C to 120°C (-4°F to 248°F)

0°C to 650°C (32°F to 1202°F)

Optional Calibration: 300°C to 1200°C (572°F to 2192°F)

Digital Zoom: 1-4x continuous

Common Features

Detector Type and Pitch: Uncooled microbolometer, 17 µm

Spectral Range: 7.5 - 14.0 µm

Image Frequency: 30 Hz

Lens Identification: Automatic

F-Number: f/1.3 (24° lens)

Focus: Continuous with laser distance meter (LDM), oneshot LDM, one-shot contrast, manual

Minimum Focus Distance: 24° lens – 0.15 m; optional macro mode

Programmable Buttons: 2

Image Presentation and Modes

Display: 4”, 640 x 480 pixel touchscreen LCD with

auto-rotation

Digital Camera: 5 MP, with built-in LED photo/video lamp

Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

Image Modes: Infrared, visual, MSX®, Picture-in-Picture

Picture-in-Picture: Resizable and movable

UltraMax®: Quadruples pixel count; activated in menu andprocessed in FLIR Tools

Measurement and Analysis

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Spotmeter and Area: 3 ea. in live mode

Measurement Presets: No measurement, center spot, hot spot, cold spot,

User Preset 1, User Preset 2

Laser Pointer: Yes

Laser Distance Meter: Yes; dedicated button

Annotations

Voice: 60 sec. recording added to still images or video via

built-in mic (has speaker) or via Bluetooth

Text: Predefined list or touchscreen keyboard

Image Sketch: From touchscreen, on infrared image only

Distance, Area Measurement: Yes; calculates area inside measurement box in m2 or ft2

GPS: Automatic image tagging

METERLiNK®: Yes

Image Storage

Storage Media: Removable SD card

Image File Format: Standard JPEG with measurement data included

Time Lapse (Infrared): 10 sec to 24 hrs

Video Recording and Streaming

Radiometric IR Video Recording: Real-time radiometric recording (.csq)

Non-Radiometric IR or Visual Video: H.264 to memory card

Radiometric IR Video Streaming: Yes, over UVC or Wi-Fi

Non-Radiometric IR Video Streaming

H.264 or MPEG-4 over Wi-Fi

MJPEG over UVC or Wi-Fi

Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi

Video Out: DisplayPort over USB Type-C

Additional Data

Battery: Type Li-ion battery, charged in camera or on separate

charger

Battery Operating Time: Approx. 4 hours at 25°C (77°F) ambient temperature

and typical use

Operating Temperature Range: –15°C to 50°C (5°F to 122°F)

Storage Temperature Range: –40°C to 70°C (-40°F to 158°F)

Shock/Vibration/ Encapsulation; Safety: 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6 / IP 54; EN/UL/CSA/PSE 60950-1

Weight/Dimensions w/o Lens: 1.3 kg (2.9 lbs), 140 x 201 x 84 mm (5.5 x 7.9 x 3.3 in)
