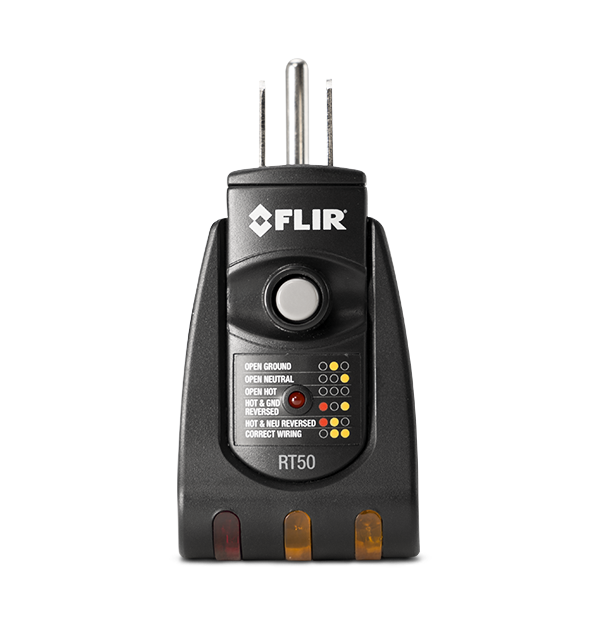

FLIR RT50 Receptacle tester (110 ~125 V AC)

Dimensions (L x W x H): 96 x 46 x 30.5 mm (3.8 x 1.8 x 1.2 in)

ENVIRONMENTAL

Drop test: 1.52 m (5 ft)

Operating Temp & Humidity: 0 to 50°C (32 to 122°F)

Storage temperature and relative humidity [RH]: -10 to 60°C (14 to 140°F)

MEASUREMENT & ANALYSIS

Frequency: 50 / 60 Hz

Nominal Voltage: 110 - 125 V AC

Circuit/Outlet Type: 3-wire with GFCI

Wiring Anomaly Detection: Open ground, open neutral, open hot, hot & ground reversed, hot & neutral reversed, correct wiring

GFCI Test: GFCI trip test with status LED

Datasheet
