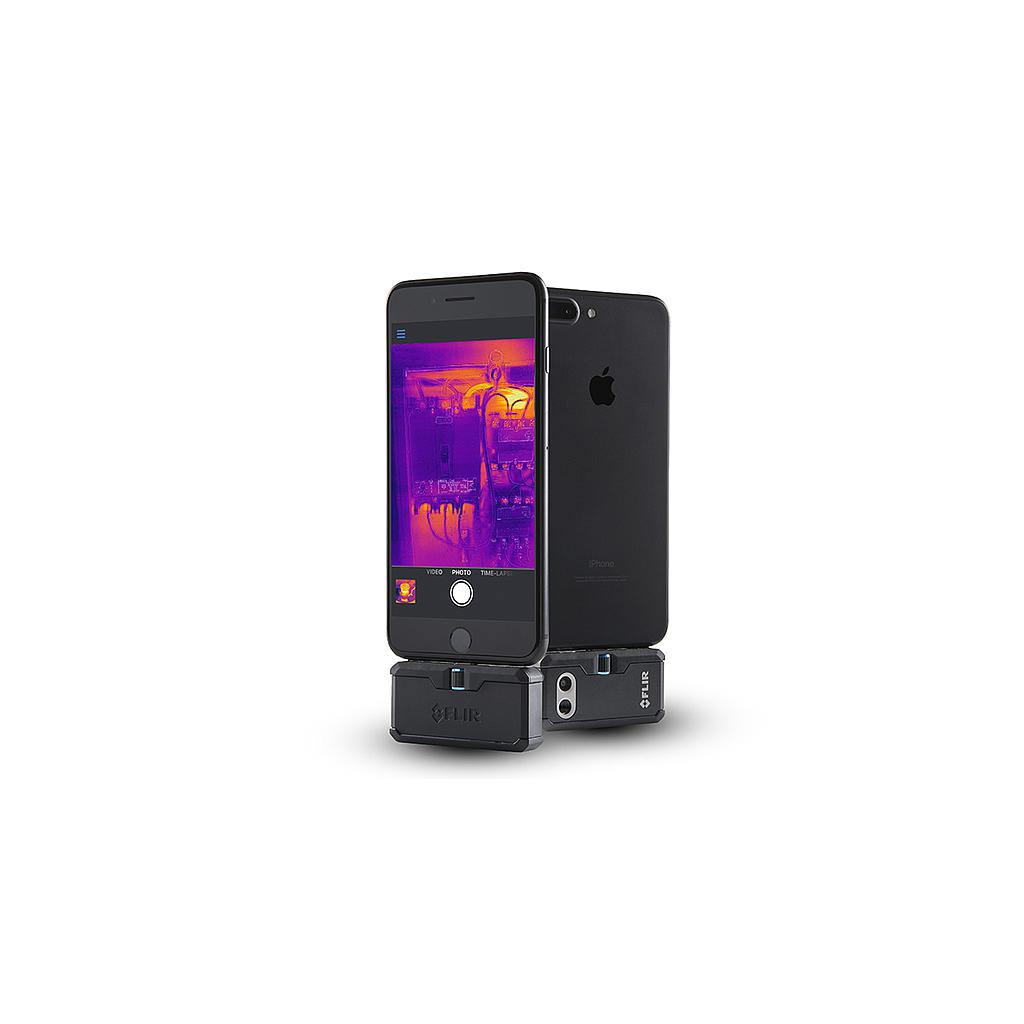

FLIR ONE PRO LT PRO-GRADE THERMAL CAMERA FOR SMARTPHONES (For IOS, -20°C~120°C, 80x60 pixels)

Accuracy: ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.

Non-Operating Temperature:-20°C — 60°C (-4°F — 140°F)

Scene Dynamic Range: -20°C — 120°C (-4°F — 248°F)

Spot Meter: Off / °C / °F. Resolution 0.1°C / 0.1°F

Thermal Sensitivity/NETD:100 mK

Weight:36.5 g

Dimensions (H x W x D)68 × 34 × 14 mm (2.7 × 1.3 × 0.6 in)

Phone: iOS

APP

Adjustable MSX distance:0.3 m — Infinity

Battery charge monito: 0 — 100%

Capture modes: Video, Still image, Time lapse

File Formats: Still images – radiometric jpeg Video – MPEG-4 (MOV)

Palette: Gray (white hot), Hottest, Coldest, Iron, Rainbow, Rainbow HC, Arctic, Lava and Wheel

Video and Still Image Display/Capture: Saved as 1440 × 1080

CONNECTIONS & COMMUNICATIONS

Charging: Female USB-C (5V/1A)

Video: Male Lightning

ENVIRONMENTAL & APPROVALS

Emissivity SettingsMatte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%

Mechanical shock: Drop from 1.8 m

Operating Temperature: 0°C — 35°C (32°F — 95°F) , battery charging 0°C — 30°C (32°F — 86°F)

IMAGING & OPTICAL

Focus: Fixed 15 cm — Infinity

Frame Rate: 8.7 Hz

General Description: Thermal and Visual Cameras with MSX

HFOV/VFOV: 50° ±1° / 38° ±1°

Shutter: Automatic/Manual

Thermal Resolution: 80 × 60

Thermal Sensor: Pixel size 17 µm, 8 — 14 µm spectral range

Visual Resolution: 1440 × 1080

POWER

Battery charge time: 40 min

Battery Life: Approximately 1 hr

Datasheet
