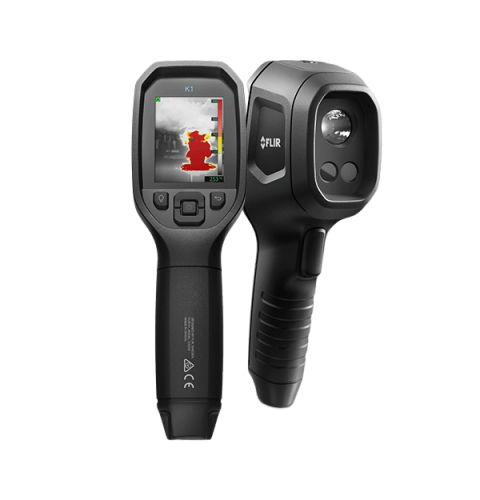

FLIR K1 Firefighting Cameras (–10°C ~ 140°C, 10°C ~ 400°C, 160 × 120 pixel)

IR Resolution: 160 × 120 pixels

Display: 2.4 in. backlit LCD, 320 × 240 pixels

Object Temperature Range: High Gain Mode: –10°C to 140°C (14°F to 284°F); Low Gain Mode: –10°C to 400°C (14°F to 752°F) (at room temperature)

Image Modes• TI Basic (White-hot with isotherm) • White-hot • Iron

Camera weight incl battery: 0.41 kg (0.90 lb.)

Camera size (L x W x H): 208 × 85 × 65 mm (8.19 × 3.3 × 2.6 in)

Imaging & Optical

Built-in Digital Camera: 320 × 240 pixels

Depth of Field: 0.1 m (0.33 ft.), infinity

Detector Type: Focal plane array, uncooled microbolometer

Digital Camera FOV: 71° × 56°, adapts to the IR lens

Field of view (FOV): 57° × 44°

f-number: 1.1

Focal Length: 1.9 mm (0.075 in.)

Focus: Fixed

Image Frequency: 8.7 Hz

Image Modes• TI Basic (White-hot with isotherm) • White-hot • Iron

IR Resolution: 160 × 120 pixels

Multi Spectral Dynamic Imaging (MSX): Yes

Pitch: 12 µm

Spatial resolution (IFOV): 6.22 mrad

Spectral Range: 8–13 µm

Storage Capacity: Approx. 10,000 images

Thermal Sensitivity/NETD: <100 mK @ 30°C (86°F)

Environmental & Certifications

Corrosion: NA

Drop: 2 m (6.6 ft.)

EMC: EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC Title 47 part 15, subpart B

Encapsulation: IP 67 (IEC 60529)

Humidity (Operating and Storage): 0–90% RH (0°C–37°C / 32°F– 98.6°F); 0–65% RH (37°C–45°C / 98.6°F–113°F); 0–45% RH (45°C–55°C / 113°F–131°F)

Magnetic fields: EN 61 000-4-8 Class 3

Operating Temperature Range: Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F) Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F)

Shock: 25 g (IEC 60068-2-27)

Storage Temperature Range: –30°C to 55°C (–22°F to 131°F)

Tripod Mounting: UNC 1/4"-20

Vibration: 2 g (IEC 60068-2-6)

Power

Battery capacity: 3000 mAh

Battery operating time: Approximately 5.5 hours in MSX mode; 3.8 hours with torchlight only

Battery Type: Li ion

Battery voltage: 3.7 V

Battery weight: NA

Charging system: Battery is charged inside the camera

Charging Temperature: 0°C to 45°C (32°F to 113°F)

Charging Time: 4 hours to 90%, 6 hours to 100%

Power Management: Adjustable

Safety [power supply]: Camera: IEC/EN 61010-1 Power supply: UL, CSA, CE, PSE, CCC, and SAA

Start Up Time: 15 s

Start-up time from sleep mode: TBD

Measurement & Analysis

Accuracy: ±5°C (±9°F) or ±5% in High Gain Mode, or ±10°C (±18°F) or ±10% in Low Gain Mode, for ambient temperatures of 10–35°C (50–95°F)

Auto Range: NA

Automatic Hot Detection: NA

Camera size (L x W x H): 208 × 85 × 65 mm (8.19 × 3.3 × 2.6 in)

Camera weight incl battery: 0.41 kg (0.90 lb.)

Isotherm• Yellow coloring 150°C to 250°C • Orange coloring 250°C to 350°C • Red coloring >350°C

Object Temperature Range: High Gain Mode: –10°C to 140°C (14°F to 284°F); Low Gain Mode: –10°C to 400°C (14°F to 752°F) (at room temperature)

Spot Meter: Center spot

General

Beam Angle: 20°

Compatible with FLIR software: FLIR Tools

Flashlight: Bright LED flashlight

LED CCT: 5700K

LED CRI: 70

Light Output: 300 lumens

Material: PPSU Silicon rubber Aluminium, cast

Packaging Size: 283 × 148 × 103 mm (11.1 × 5.83 × 4.06 in)

User Interface

Display: 2.4 in. backlit LCD, 320 × 240 pixels

Communication & Data Storage

Image Storage: JPEG files

Image Storage Capacity: 4 GB

Image Storage Mode: FLIR radiometric JPEGs, visual JPEGs

Interface: Update from PC devices over USB

Storage Media: Internal memory (3.9 GB)

USB: USB Type-C
