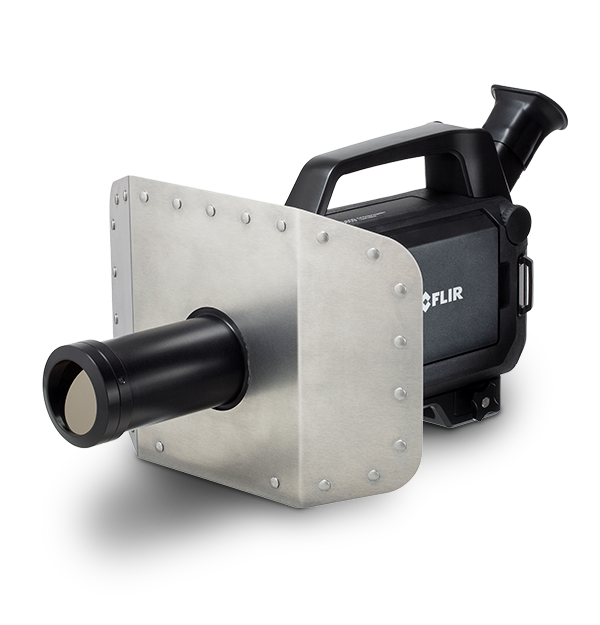

FLIR G609 High Resolution Furnace and Boiler Inspection Camera (-20°C ~ 1500°C, 640 × 480 px)

Thermal Lens options: 24° furnace, 6° lenses

IR resolution: 640 × 480 pixels

Field of view (FOV): 24°

Focal length: 23 mm

Minimum focus distance: 0.3 m (1.0 ft)

F-number: 2.9

Focus: Autofocus, manual focus

Zoom: 1 – 8× continuous, digital zoom

Detector type: Focal plane array (FPA), cooled InSb

Detector pitch: 15 µm

Sensor cooling: Stirling Microcooler (FLIR MC-3)

Image presentation modes: IR image, visual image

Color palettes

• Arctic

• White hot

• Black hot

• Iron

• Lava

• Rainbow

• Rainbow HC

Radiometric IR video recording: RTRR .csq (compressed) & .seq 15 hz (uncompressed)

Non-radiometric IR or visual video: H.264 compression to memory card, .mpeg4 file format

Radiometric IR video streaming: Over UVC

Non-radiometric IR video streaming

• H.264 (AVC) over RTSP (Wi-Fi)

• MPEG4 over RTSP (Wi-Fi)

• MJPEG over UVC and RTSP (Wi-Fi)

Visual recording: H.264 to memory card

Viewfinder: Built-in, tiltable OLED, 800 × 480 pixels

Built-in digital camera: 5 MP

Measurement and analysis

Thermal sensitivity/NETD: 20 mK @ 30°C (86°F)

Measurement temperature range: -20°C to 1500°C (-4°F to 2732°F)

Accuracy: ±1°C (±1.8°F) for temperature range 0°C, to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F)

Spotmeter:10

Area: 5 boxes with max./min./average

Profile: 1 line (horizontal or vertical)

Measurement corrections: Reflected temperature, distance, atmospheric transmission, humidity, external optics

Languages: 21

Communication and data storage

FLIR Inspection Route: Enabled in the camera

Cloud services (via Wi-Fi): FLIR Ignite for direct, secure image uploading, organizing, storage, and sharing (required firmware available), wireless file transfer via userweb library

Bluetooth: Communication with headset

Storage media: Removable SD memory card

Image file formats: Standard JPEG, measurement data included. Infrared-only mode.

Communication interfaces: USB 2.0, Bluetooth®, Wi-Fi, HDMI

Video out: HDMI 640 × 480, HDMI 1280 × 720, DVI 640 × 480, DVI 800 × 600
