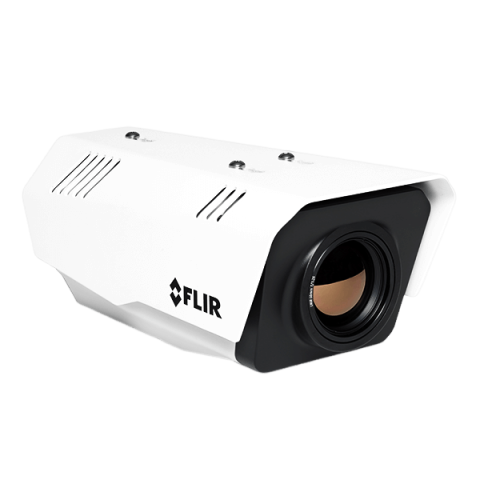

FLIR FC-632 AI Thermal AI Analytics Camera (32° (19 mm) f/1.0 lens)

General

Detector Type: Long-life, uncooled VOx microbolometer

Dimensions (L x W x H):Without sunshield: 259 × 114 × 106 mm/10.2 × 4.5 × 4.2 in; With sunshield: 282 × 129 × 115 mm/11.1 × 5.1 × 4.5 in

Effective Resolution: 327,680 pixels

E-Zoom: 4x continuous E-Zoom

Focus Range: Athermalized, focus-free

Power Consumption:

Source: PoE+ (802.3at) 12 VDC 24 VDC 24 VAC(VA)

Heater off: <9 W <10 W <9 W <15 W; Heater on (@ 100%): <25 W <28 W <25W <32W

Weight With sunshield: 7.5/9/13/19/25/35 mm 2.2 kg (4.75 lb) - 60 mm 2.4 kg (5.25 lb) - 75 mm 2.5 kg (5.5 lb)

Weight Without sunshield: 7.5/9/13/19/25/35 mm 1.8 kg (4 lb) - 60 mm 2.0 kg (4.5 lb) - 75 mm 2.2 kg (4.75 lb)

Environmental

Humidity: 0-95% relative humidity (storage), 0-90% relative humidity (operation)

IP Rating (dust & water ingress): IP66 & IP67

Operating Temperature Range: -40°C to 70°C/-40°F to 158°F (cold start)

Shock: MIL-STD-810G, Method 516.6 (Operational) IEC 60068-2-27:08 (Transportation)

Storage Temperature Range: -50°C to 85°C (-58°F to 185°F)

Vandal Resistance: IK10 (except lens and windows)

Vibration: IEC 60068-2-64:08

Measurement & Analysis

Analytics Features: Region Entrance/Intrusion Detection, Crossover/Fence Trespassing, CNN classifier

Analytics Management: Web-based configuration and management; masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control

System Integration

Analog Video Output Composite: 1Vp-p (PAL or NTSC), 1 x BNC 75 Ω

Control Input/Output: 1x dry contact in; 1x relay out (rated load 0.025 A@ 5 VDC)

Ethernet: 10/100 Mbps

External Analytics Compatible: Yes

Network APIs: NEXUS SDK, NEXUS CGI, ONVIF Profile S, G, T

Streaming Resolution: 640 × 512

Supported Protocols: IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1x

Video Over Ethernet: Two independent channels of H.264 / H.265 or MJPEG

Thermal Camera

Array Format (Thermal): 640 × 512

f number (Thermal): f/1.0

Field of View (FOV) (Thermal): 32° × 26°

Focal Length - Thermal: 19 mm

Image Uniformity Optimization: Automatic flat field correction (FFC); thermal and temporal triggers

Lens: 19 mm

Pixel Pitch: 17 µm

Spectral Range (Thermal): 7.5 μm to 13.5 μm

Thermal AGC Modes :Brightness, Contrast, Sharpness, Grey Shade Compression, Gamma, Smart Screen Balance

Thermal AGC Region of Interest [ROI]: Default, Presets, and User definable to ensure optimal image quality on subjects of interest

Thermal Frame Rate: NTSC: 30 Hz - PAL: 30 Hz / 8.3 Hz

Thermal Image Settings: Brightness, Contrast, Sharpness, Auto AGC, Digital Detail Enhancement (DDE), Gamma, Smart Screen Optimization

Thermal Sensitivity/NETD: <25 mK @ 25°C (77°F) for f/1.0

Video & Recording

Composite Video NTSC or PAL: Hybrid system with IP & analog video, dynamic NTSC or PAL settings

Local Storage: Support for up to 512 GB SD Card (not supplied)

Video Compression: Two independent channels of H.264 / H.265 or MJPEG
