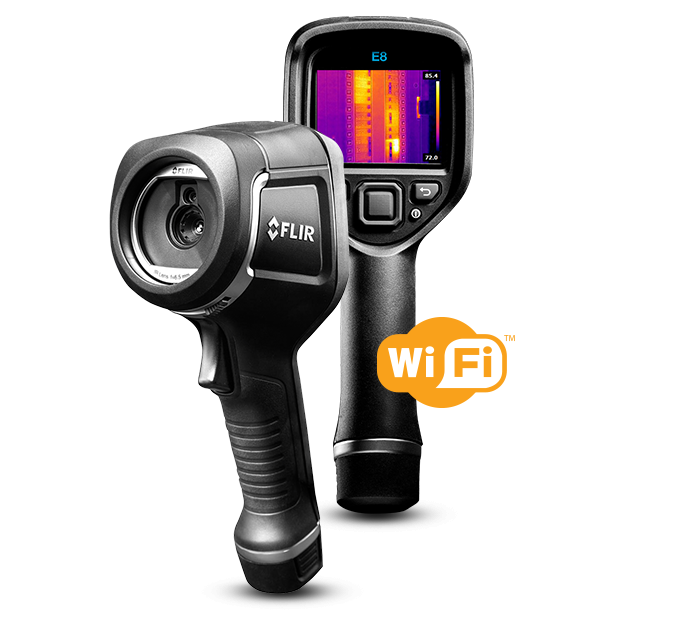

FLIR E8-XT INFRARED CAMERA (realtime, -20°C~550°C, 320 × 240 pixels, 2.6 mrad)

Image and optical data

IR resolution: 320 × 240 (76,800 pixels)

Thermal sensitivity/NETD: <0.05°C (0.09°F) / <50 mK

Spatial resolution (IFOV): 2.6 mrad

Field of view (FOV): 45° × 34°

F-number: 1.5

Image frequency: 9 Hz

Focus: Focus-free

Detector data

Detector type: Focal Plane Array (FPA), uncooled microbolometer

Spectral range: 7.5–13 µm

Image presentation and modes

Display: 3” 320 × 240 color LCD

Image adjustment: Automatic adjust/lock image

Image modes: Thermal MSX, thermal, picture-in-picture, thermal blending, digital camera

Color palettes: Iron, Rainbow, Black & White

Measurement and analysis

Object temperature range: -20°C to 550°C (-4°F to 752°F) in two ranges

Accuracy: ±2°C (±3.6°F) or ±2% of reading for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Spotmeter: Center spot

Area: Box with max/min

Isotherm: Above alarm, below alarm

Data communication and interfaces

Interfaces: USB Micro: data transfer to and from PC and Mac device

Wi-Fi: Peer-to-peer or infrastructure

File format: Standard JPEG, 14-bit measurement data included

General

Operating temperature range: -15°C to 50°C (5°F to 122°F)

Battery Rechargeable: 3.6 V Li ion battery

Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use

Battery charging time: 2.5 hours to 90% capacity in camera. 2 hours in charger

Drop: 2 m (6.6 ft.)

Camera weight, incl. battery: 0.575 kg (1.27 lb.)

Camera size (L × W × H): 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)

Box contents: Infrared camera, hard transport case, battery, USB cable, power supply/charger with EU, UK, US and Australian plugs, printed documentation
