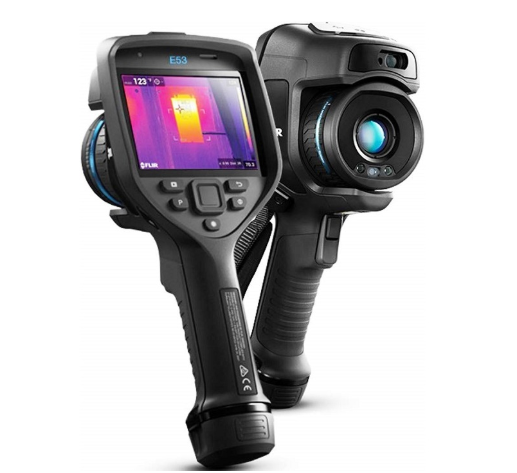

FLIR E53-24 Thermal imaging camera

General specifications:

- IR Resolution: 240 x 180 pixels

- Temperature measurement range: -20 ° C to 120 ° C (-4 ° F to 248 ° F), 0 ° C to 650 ° C (32 ° F to 1200 ° F)

- Temperature sensitivity (NETD): <40 mK @ 30 ° C (86 ° F)

- Spectral range: 7.5 - 14.0 µm

- Image frequency: 30Hz

- Field of view (FOV): 24 ° x 18 °

- Space resolution (IFOV): 1.75 mrad

- Lens identification: automatic

- Focus: Focus freely

- Magnification: 1-4X

Photo parameters and shooting modes:

- Display screen: 4 ”, 640 x 480 pixels

- Camera: 5 MP, 53 ° x 41 ° FOV

- Color palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

- Image mode: IR thermal image, real image, parallel image, MSX®

- Parallel image mode: display in parallel between normal images and IR images, can be moved and resized

- MSX® mode: displays temperature details on a high-resolution photo background

- UltraMax ™ mode: enabled on FLIR Tools + (4X zoom)

Store photos:

- Memory: SD memory card (8GB)

- Picture format: JPEG-14bit standard with measurement data

Record video and stream:

- Thermal video format: standard CSQ

- Normal video format: H.264

- Broadcast image heat: Via UVC or Wifi

- Streaming ordinary images: H.264 or MPEG-4 via Wifi, MJPEG via UVC or Wifi

- Communication standards: USB2.0, Bluetooth, Wifi

- Video Output: USB Type-C

Additional parameters:

- Battery type: Rechargeable Li-ion battery

- Battery life: 2.5 hours continuous operation at 25 ° C (77 ° F)

- Operating temperature: –15 ° C to 50 ° C (5 ° F to 122 ° F)

- Standard: 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 / IEC 60529; EN / UL / CSA / PSE 60950-1

- Dimensions: 27.8 x 11.6 x 11.3 cm (11.0 x 4.6 x 4.4 in)

- Weight (without lens): 1 kg (2.2 lbs)

Provide cover:

- Lens 24 ° x 18 ° (10 mm): 1

- Rechargeable battery: 2

- Battery charger: 1

- Front Lens: 1

- Carrying case: 1

- Strap: 1

- Lens cap (front / back): 2

- Lens cleaning cloth: 1

- Power supply unit 15 W3 A: 1

- 8 GB memory card: 1

- Torx screwdriver: 1

- USB 2.0 to USB Type-C: 1 conversion cable

- USB Type-C to HDMI conversion cable: 1

- USB Type-C cable: 1

- User manual: 1 set
