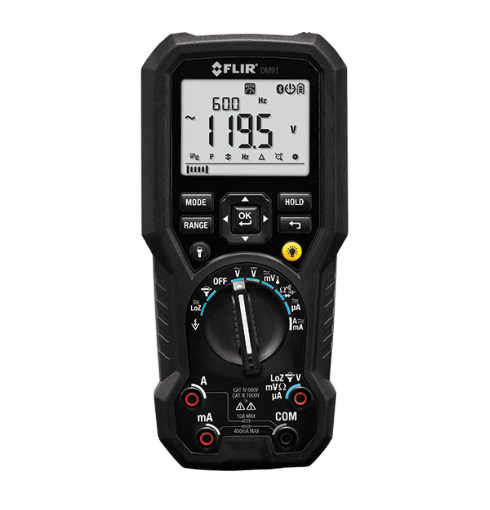

FLIR DM91 Industrial TRMS Multimeters (0.09%)

- Features by Meter
+ Connectivity: Bluetooth®
+ Data Logging & Storage: 1 file of 40k scalar measurements
- Measurements
+ True RMS Yes
+ Range / Basic Accuracy
AC / DC Volts 1000 V ±1.0% / 0.09%
AC / DC mVolt 600.0 mV ±1.0% / 0.5%
VFD AC Volts 1000 V ±1.0%
AC / DC LoZ V 1000 V ±2.0%
AC / DC Amps 10.00 A ±1.5% / 1.0%
AC / DC mAmps 400.0 mA ±1.5% / 1.0%
AC / DC μAmps 4,000 μA ±1.0%
Resistance:
6.000 MΩ ±0.9%
50.00 MΩ ±3.0%
Capacitance: 10.00 mF ±1.9%
Diode Test : 1.500 V ±0.9%
Frequency Counter: 100.00 kHz ±0.1%
Temperature, Type-K Thermocouple:
-40°F to 752.0°F ±1.0% + 5.4°F
-40°C to 400°C ±1.0% + 3°C
- Additional Measurements
+ Continuity Check: 20 Ω and 200 Ω
+ Measuring Rate: 3 samples per second
General Information
+ Auto Power Off : Yes
+ Worklights: Yes
+ Battery: 3 AA batteries; optional TA04 Li-Poly rechargeable battery
+ Drop Test: 3 m
+ Safety Category Rating: CAT III-1000V, CAT IV-600V
+ Size (H x W x L): 200 x 95 x 49 mm (7.9 × 3.7× 1.9 in)
+ Weight: 535 g (18.8 oz
- Box Contents: FLIR digital multimeter, batteries, silicone test leads,
alligator clips, test lead storage/holder attachment, Type-K
thermocouple, soft carrying case
