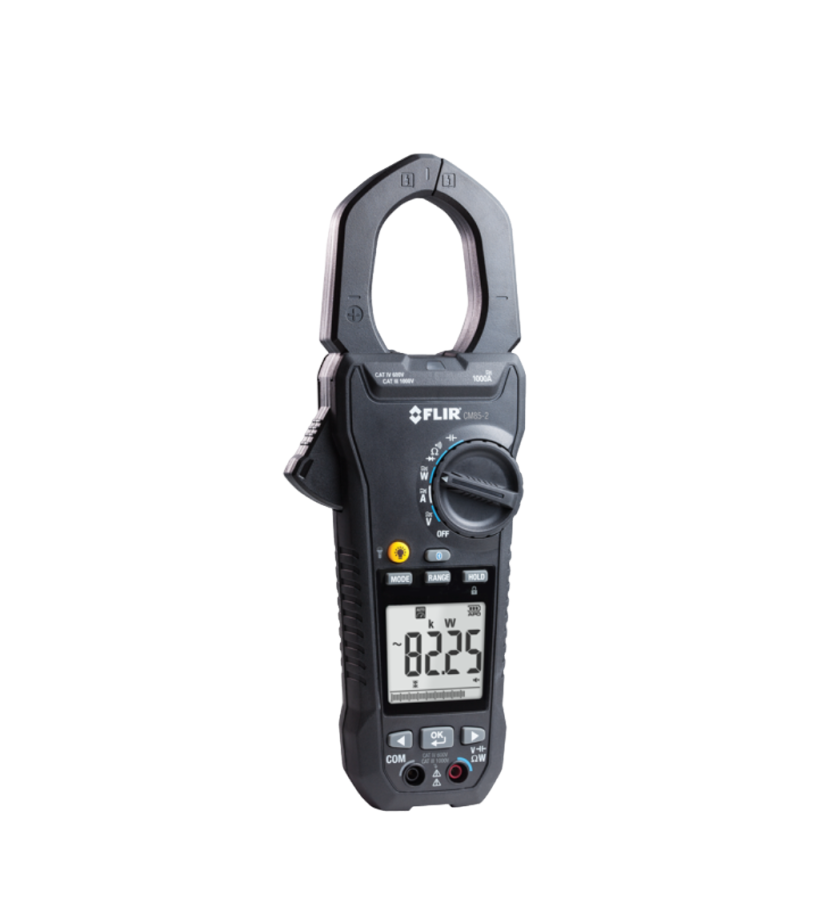

FLIR CM85-2 True RMS Power Clamp Meter (Wireless) (999.9 V AC/DC, 999.9A AC/DC)

Measurement Ranges and Accuracy

Voltage DC:

99.99 V, ±(0.7% + 2 digits)

999.9 V, ±(0.7% + 2 digits)

Voltage AC:

0.05 V to 99.99 V, ±(1.0% + 5 digits)

999.9 V, 50 Hz to 500 Hz

VFD, ACV: 0.05 V to 99.99 V, 50 Hz to 60 Hz ±(1% + 5 digits)

999.9 V, 50 Hz to 60 Hz ±(1% + 5 digits)

Current DC:

99.99 A, ±(2% + 0.5 A)

999.9 A, ±(2% + 5 digits)

Current AC:

0.10 A to 99.99 A, 50 Hz to 60 Hz ±(2% + 5 digits)

999.9 A, >60 Hz to 400 Hz ±(2.5% + 5 digits)

VFD, ACA 0.10 A to 99.99 A, 50 Hz to 60 Hz ±(2% + 5 digits)

999.9 A, 50 Hz to 60 Hz ±(2% + 5 digits)

Peak Hold ACV:

140.0 V, ±(3.0% + 15 digits)

1400 V, ±(3.0% + 15 digits)

Peak Hold ACA:

140.0 A, ±(3.5% + 15 digits)

1400 A, ±(3.5% + 15 digits)

Frequency:

20.00 Hz to 99.99 Hz, ±(0.5% + 3 digits)

20.0 Hz to 999.9 Hz, ±(0.5% + 3 digits)

0.020 kHz to 9.999 kHz, ±(0.5% + 3 digits)

Total harmonic distortion ACA/ACV: 99.9%, ±(3.0% + 10 digits)

Harmonic distortion: H01–H12 99.9%, ±(5% + 10 digits)

Harmonic distortion: H13–H25 99.9%, ±(10% + 10 digits)

Inrush current ACA:

99.99 A, ±(3% + 0.3 A)

999.9 A, ±(3% + 5 digits)

Watts DC:

9.999 kW (10 V, 5 A min), ±(3% + 0.05 kW)

99.99 kW (10 V, 5 A min), ±(3% + 0.5 kW)

999.9 kW (10 V, 5 A min), ±(3% + 10 digits)

Watts AC:

9.999 kW (10 V, 5 A min), ±(3% + 10 digits)

99.99 kW (10 V, 5 A min), ±(3% + 10 digits)

999.9 kW (10 V, 5 A min), ±(3% + 10 digits)

Power factor: -1.00 to 0.00 to +1.00, ±3° ±1 digit

Resistance:

999.9 Ω, ±(1.0% + 5 digits)

9.999 kΩ, ±(1.0% + 3 digits)

99.99 kΩ, ±(1.0% + 3 digits)

Continuity: 999.9 Ω, ±(1.0% + 5 digits)

Diode: 0.40 V to 0.80 V, ±0.1 V

Capacitance:

3.999 μF, ±(1.9% + 8 digits)

39.99 μF, ±(1.9% + 8 digits)

399.9 μF, ±(1.9% + 8 digits)

3.999 mF, ±(1.9% + 8 digits)

Measuring rate: 3 times per second

Meter Data

Jaw opening: 45 mm (1.77 in)

Bluetooth range: 10 m (32 ft)

Category rating: CAT IV-600 V, CAT III-1000 V

Data recording: Available via METERLiNK App

Drop test: 1.2 m (4 ft)

Communication & Data Storage

Bluetooth range max: 10 m (32 ft)

Power

Auto Power Off: Approximately 30 minutes

Battery Life: 50 hours with alkaline batteries (backlight, work light, and Bluetooth are off)

Power Requirements: 6 × 1.5 V AAA alkaline batteries

General

Dimensions (L x W x H): 276 mm × 101 mm × 50 mm (10.87 in × 3.98 in × 1.97 in)

Jaw Opening: 45 mm (1.77 in)

Weight: Total weight including batteries: 0.65 kg (1.43 lb)

Worklights: Yes
