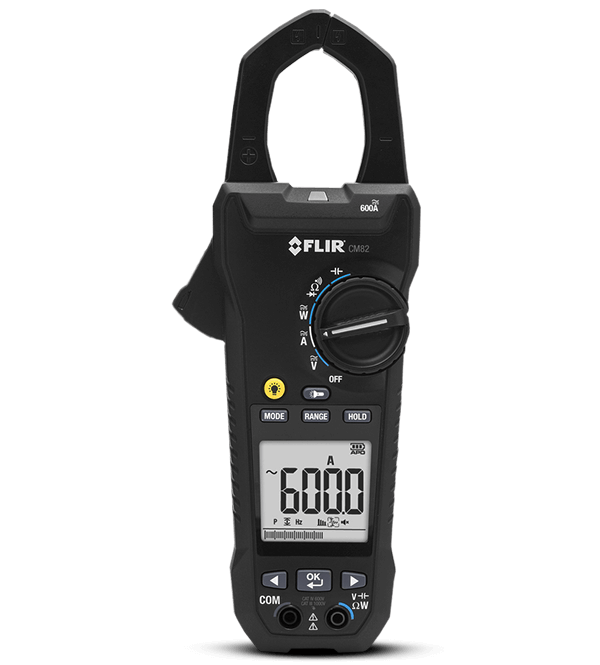

FLIR CM82 True RMS Power Clamps (AC/DC 600A, True RMS)

- AC/DC Current: Range: 600 A; Accuracy: +/- 2%
- AC/DC Voltage: Range: 1000 V; Accuracy: +/- 1% / 0.7%
- AC VFD Voltage: Range: 1000 V; Accuracy: +/- 1%
- Harmonics: Range: 1st-25th Order; Accuracy: +/- 5%
- Total Harmonic Distortion: Range: 0.0 to 99.9%; Accuracy: +/- 3%
- Inrush Current: Range: 600 ACA Max (Integration Time 100 ms); Accuracy: +/- 3%
- Active Power: Range: 10 kW to 60 kW, (10 V, 5 A min); Accuracy: +/- 3%
- Diode Test: Range: 0.4 to 0.8 V; Accuracy: +/- 0.1V
- Capacitance: Range: 3.999 mF Max; Accuracy: +/- 1.9%
- Resistance: Range: 99.99 kΩ Max; Accuracy: +/- 1%
- Continuity Threshold: Range: 30 Ω; Accuracy: +/- 1%
- Frequency: Range: 20.00 Hz to 9.999 kHz; Accuracy: +/- 0.5%
General Information
- Jaw Opening: 37 mm (1.45”, 1000MCM)
- Category Rating: CAT IV-600V, CAT III-1000V
- Bluetooth Range Max: N/A
- Battery Type: 6 x AAA
