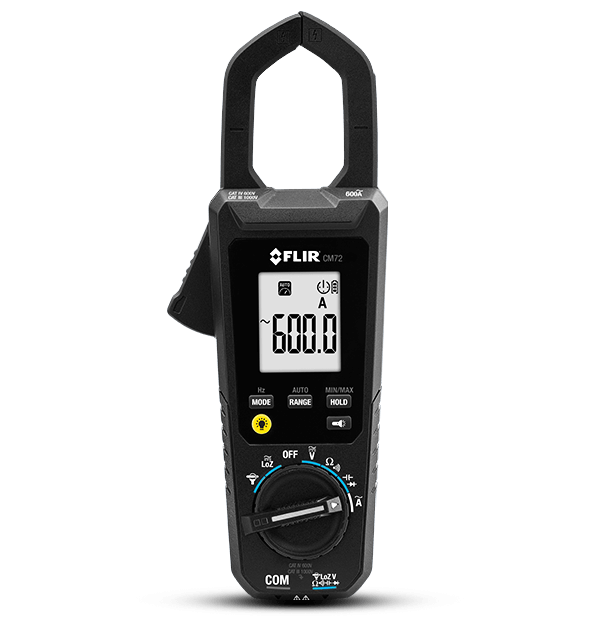

FLIR CM72 Clamp Meter (AC 600A)

SPECIFICATIONS

Jaw Opening:1.38" (35mm), 1250MCM

AC Current:600.0A / Basic Accuracy ±2.0%

MEASUREMENT & ANALYSIS

AC Current:600.0A / Basic Accuracy ±2.0%

Capacitance:1000µF / Basic Accuracy ±1.0%

Category Rating:CAT IV-600V, CAT III-1000V

Continuity:600.0Ω / Basic Accuracy ±1.0%

DC Voltage:600.0V / Basic Accuracy ±1.0%

Diode:1.5V / Basic Accuracy ±1.5%

Frequency:60.00kHz / Basic Accuracy ±0.1%

Inrush AC Current:- / Basic Accuracy ±3.0%

Inrush Current Threshold:- / Basic Accuracy

LoZ Mode AC Voltage:600.0V / Basic Accuracy ±1.0%

LoZ Mode DC Voltage:600.0V / Basic Accuracy ±1.0%

Resistance:6000Ω / Basic Accuracy ±1.0%

VFD AC Current:600.0A / Basic Accuracy ±2.0%

VFD AC Voltage:- / Basic Accuracy ±1.0%

POWER

AC Voltage:600.0V / Basic Accuracy ±1.0%

Battery type:4 x AAA

DC Current:- / Basic Accuracy ±2.0%

GENERAL

Includes:Clamp Meter, 4 x AAA Batteries, Premium Silicone Test Leads, Quick Start, User Manual (CD), Extended Warranty Registration Card

Jaw Opening:1.38" (35mm), 1250MCM
