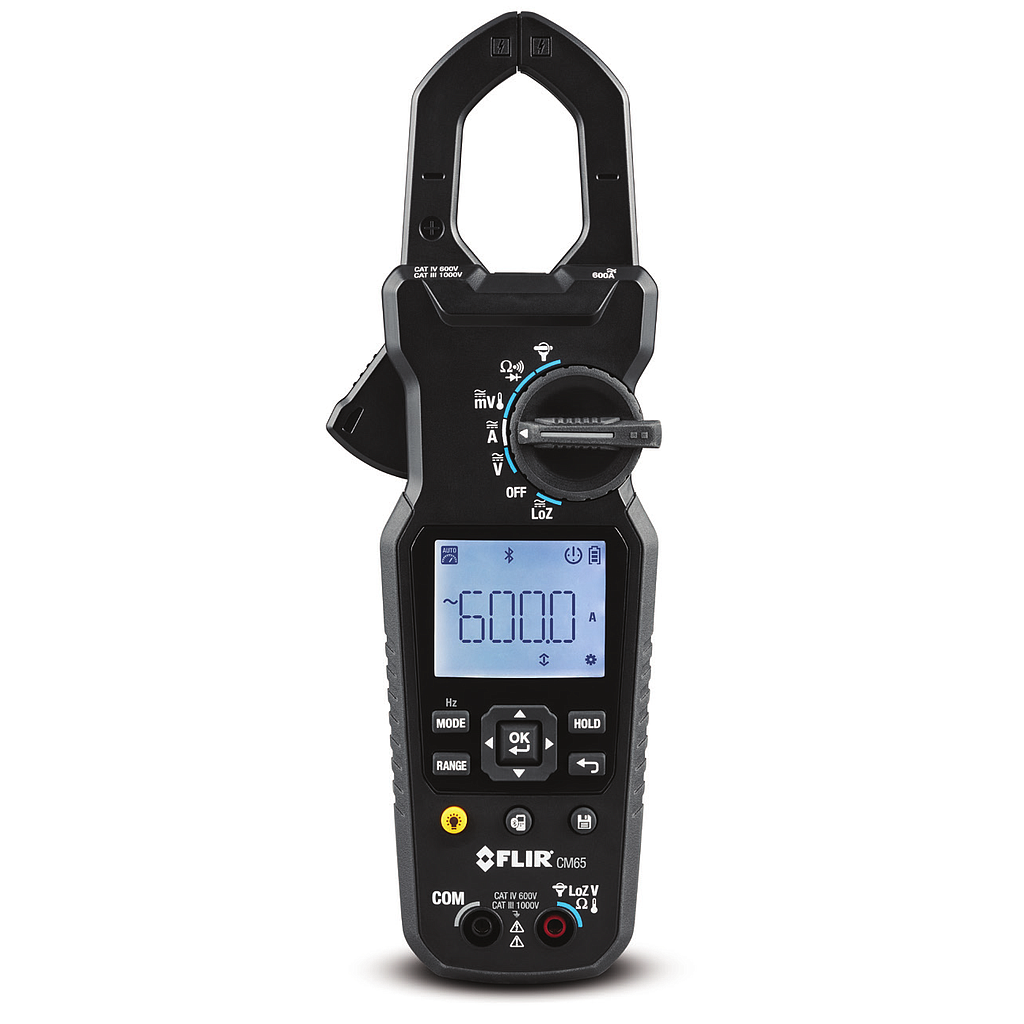

FLIR CM65 Clamp meter (AC/DC 600A, 1000V; True RMS)

Backlight LCD: Yes

Jaw Opening: 30mm max

Size [L × W × H]: 251 × 86 × 41 mm (9.9 × 3.4 ×1.6in)

CONNECTIONS & COMMUNICATIONS

Connectivity: Bluetooth®

ENVIRONMENTAL

Operating Temperature: 32°F to 140°F(0°C to 60°C)

Temperature: -40 to 752°F(-40 to 400°C)

MEASUREMENT & ANALYSIS

AC Current: Range 60.00, 600.0 A / Basic Accuracy ±1.5%

AC Voltage (Digital Low Pass Filter-VFD): Range 60.00, 600.0, 1000 V/ Basic Accuracy ±1%

AC/DC Voltage:

[AC] Range: 60.00, 600.0, 1000V/ Basic Accuracy ±0.7%

[DC] Range: 60.00, 600.0, 1000 V / Basic Accuracy ±1% ..

[mV] Range 60.00, 600.0 mV / Basic Accuracy ±1%

Category Rating:CAT IV-600 V, CAT III-1000V

Clamp-On DC Current: Range 60.00, 600.0A/ Basic Accuracy ±1.5%

Continuity:Between 30 and 480 Ω. Beeper can be on or off

Diode:Range 3 V / Basic Accuracy ±0.9%

Frequency: Range 10 Hz to 50 kHz (60.00 mV, 600.0 mV, 60.00 V) / Basic Accuracy ±0.03% Range 10 Hz to 1 kHz (600.0 V, 1000 V) / Basic Accuracy ±0.03% Range 10 Hz to 400 Hz (VFD 600.0 V, 1000 V) / Basic Accuracy ±0.03% Range 50 Hz to 400 Hz (60.00 A, 600.0 A) / Basic Accuracy ±0.03%

LoZ Mode AC Voltage: Range 60.0, 600.0, 1000 V / Basic Accuracy ±2%

LoZ Mode DC Voltage: Range 60.00, 600.0, 1000 V / Basic Accuracy ±2%

Resistance: Range 600.0, 6.000 KΩ / Basic Accuracy ±1%

METER DATA

Auto Power Off: 10 minutes

Display:3-5/6 digits 6000 counts

Recording: Automatically log readings(8 GB internal memory)

POWER

Battery: 3 x AA

Box contents: Test lead set, MC4 test leads, quick start guide, manual, soft carrying pouch, Type-K thermocouple
