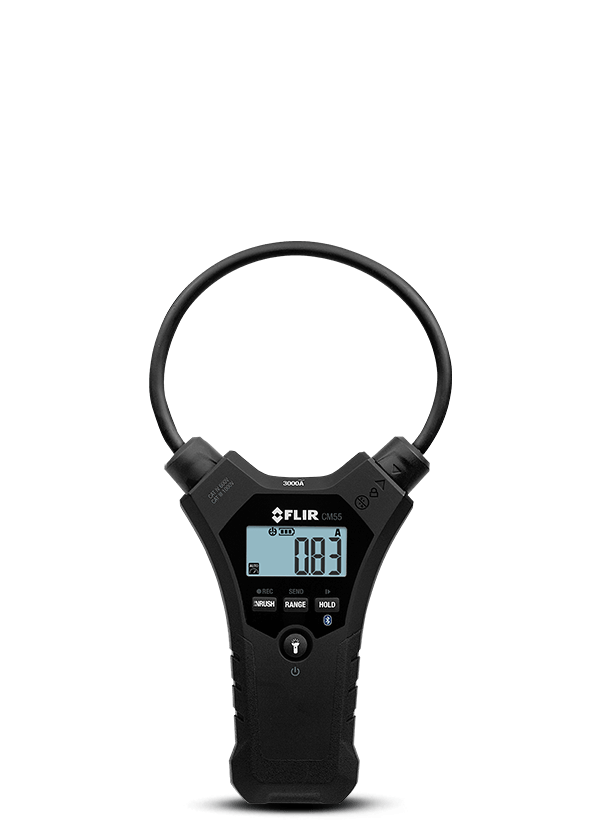

FLIR CM55 Clamp Meter (AC 3000A; true RMS)

- Maximum AC current: 3000A
- AC response: True RMS
- AC current ranges and resolution: 30.00A, 300.0A, 3000A
- Basic AC current accuracy(of reading): ± 3.0% + 5 digits
- Maximum resolution: 0.01A
- AC current bandwidth: 45Hz – 500Hz (sine wave)
- Inrush current: Min 0.5A, 100mS
- Data record mode: 20,000 points , 1 min sample rate
- Positional error(distance from optimum)
0.6" (15mm) ± 2.0%
1.0" (25mm) ± 2.5%
1.4" (35mm) ± 3.0%
- Display: 3000 count LCD with backlight and multi‐function indicators
- Max conductor diameter: 2.4" (6cm)
- Flex coil length: 10" (25cm)
- Flex coil diameter: 0.3" (7.5mm)
- Flex coil tip diameter: 0.5" (13mm)
- Worklight: Two white LEDs
- Bluetooth range max: 32' (10m)
- Wireless ID# max: Up to 20
- Power supply: (2) 1.5V “AAA”
- Drop test: 9.8' (3m)
- Agency approvals: FCC Class B, CE, UL
- Safety rating: CAT IV 600V, CAT III 1000V
- Standards: EN61010-1, EN61010-2-032, EN61326-1
