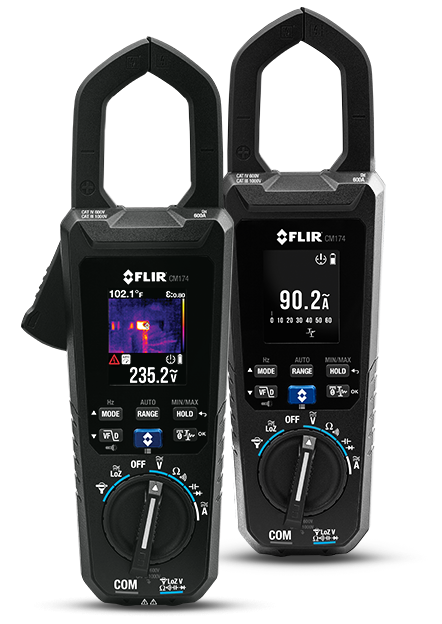

FLIR CM174 Clamp Meter (AC/DC 600A, true RMS, 80 × 60 pixels)

Thermal Imaging
- Thermal Imaging Detector: FLIR Lepton microbolometer
- Thermal Image Resolution: 4800 pixels (80 × 60)
- Field of View: 38.6° × 50°
- Thermal Image Palettes: Iron, Rainbow, Ice, Greyscale
- Image Frame Rate: 9 Hz
- Temperature Measurement: Center point of thermal image
- Temperature Range: -13°F to 302°F (-25°C to 150°C)
- Temperature Distance to Spot Ratio: 30:1
- Temperature Accuracy: ±5.4°F (3°C) or ±3% of rdg
- Spectral Response: 8–14 μm
- Temperature Targeting: Class 1 Laser Pointer and Crosshair on display
- Emissivity Settings: 4 Presets with Custom Adjustment
General Information
- Display: 6000 Count 2.0” (50mm) Color TFT
- Jaw Opening: 1.38" (35mm), 1250MCM
- Category Rating: CAT IV-600V, CAT III-1000V
- Certifications: UL
- Battery Type: 4 × AAA
Unit included:
- Imaging Clamp Meter
- 4 x AAA Batteries
- Premium CAT IV Silicone Test Leads
- Quick Start Guide
- User Manual
