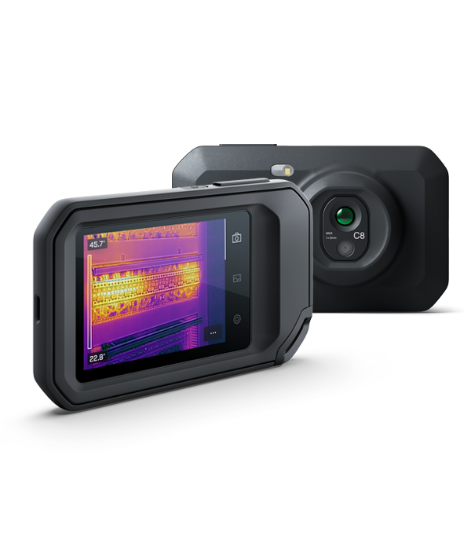

FLIR C8 Thermal Imaging Camera (-20°C ~ 450°C, 320 × 240 pixels)

Imaging and optical data

IR resolution: 320 × 240 pixels

Thermal sensitivity/NETD: <50 mK

Field of view (FOV): 35° × 27°

Minimum focus distance: 0.4 m (1.3 ft)

Spatial resolution (IFOV): 2.0 mrad/pixel

F-number: 1.4

Image frequency: 9 Hz

Focus: Focus free

Digital zoom: Yes, zoom pinch, 1 to 4× continuous

Detector data

Detector type: Focal plane array, uncooled microbolometer

Spectral range: 7.5–13 μm

Detector pitch: 12 μm

Image presentation

Display resolution: 640 × 480 pixels

Screen size: 3.5 in

Aspect ratio: 4:3

Auto orientation: Yes

Touch screen: Yes, capacitive

Display technology: IPS

Image adjustment: Automatic level and span / Manual level and span /1-Touch level and span

Image modes: Infrared image / Visual image / MSX / Picture-inpicture (IR area on visual image)

Gallery: Yes, incl. thumbnails and custom folder structure

Measurement

Object temperature range: -20°C to 450°C (-4°F to 842°F)

Accuracy at ambient temperature

• 0°C to 100°C (32°F to 212°F): ±2°C (±5.5°F)

• 100°C to 450°C (212°F to 842°F): ±2%

Measurement analysis

Measurement functions: Spot / Box with max. and min. / Isotherm

Measurements correction: Emissivity; matt/semi-matt/semi-glossy + custom value / Reflected apparent temperature / Atmospheric compensation

Color palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

Service functions

Camera software update: Automatic over Wi-Fi / USB via computer

Storage of images

Storage media: Internal memory and onboard Flir Ignite™ cloud connectivity with Wi-Fi

Image storage capacity: >5000 sets of images

Image file format: Standard JPEG, 14-bit measurement data included

Digital camera

Resolution: 5 MP

Focus: Fixed

Field of view: 71.5° × 56° (84° diagonal)

Video lamp: Yes

Power system

Battery type: Rechargeable lithium-ion battery (built-in)

Battery operating time: 3 hours

Charging system: USB-C

Charging time: 2 hours

Power management: Adjustable stand-by and automatic shut-down
