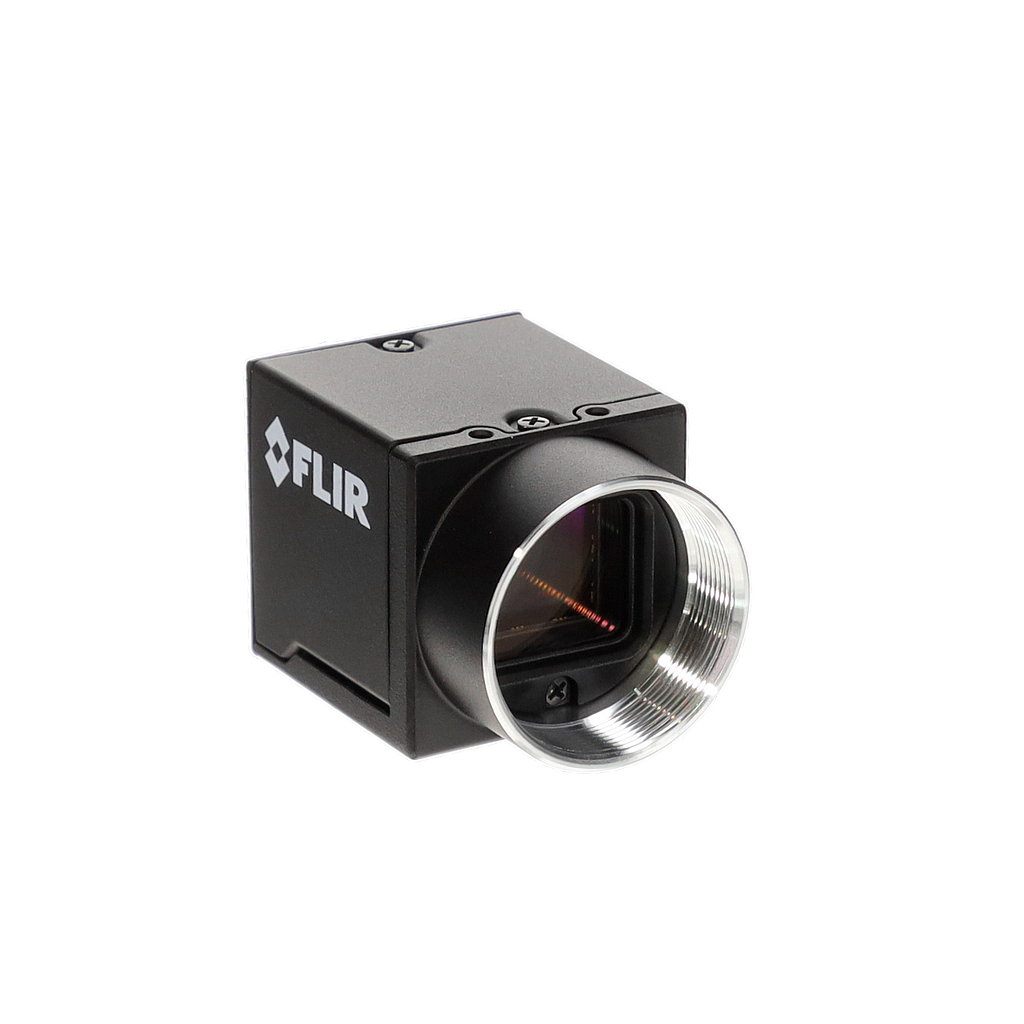

FLIR BFS-U3-200S6M-C Monochrome Camera (Includes Interface Cable 88-058 + Power Cable 88-064)

Physical & Mechanical Properties

Dimensions (mm): 29 x 29 x 30 (excludes connectors and lens mount)

Weight (g): 36

Housing: Full

Sensor

Image Buffer: 240MB

Imaging Sensor: Sony IMX183

Type of Sensor: Progressive Scan CMOS

Type of Shutter: Rolling

Camera Sensor Format: 1"

Resolution (MegaPixels): 20.00

Pixels (H x V): 5.472 x 3.648

Pixel Size, H x V (μm): 2.4 x 2.4

Sensing Area, H x V (mm): 13.13 x 8.76

Frame Rate (fps): 18.00

Pixel Depth: 10/12 bit

Exposure Time: 67μs - 30s

Dynamic Range (dB): 71.89

Machine Vision Standard: USB3 Vision v1.0

Electrical

Power Consumption (W): <3

Hardware & Interface Connectivity

Video Output: USB 3.1 Gen 1

Connector: USB 3.1 Gen 1, Micro-B with Screw Locks

Power Supply: Power over USB or via GPIO with #88-063

GPIOs: 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated bi-directional, 1 non-isolated input

Synchronization: Hardware Trigger (GPIO) or Software Trigger

Interface Port Orientation: Back Panel

GPIO Connector Type: 6-pin Hirose (HR10)

Threading & Mounting

Mounting Threads: ¼-20 with Tripod Mount Adapter #88-210

Mount: C-Mount

Environmental & Durability Factors

Operating Temperature (°C): 0 to +50

Storage Temperature (°C): -30 to +60
