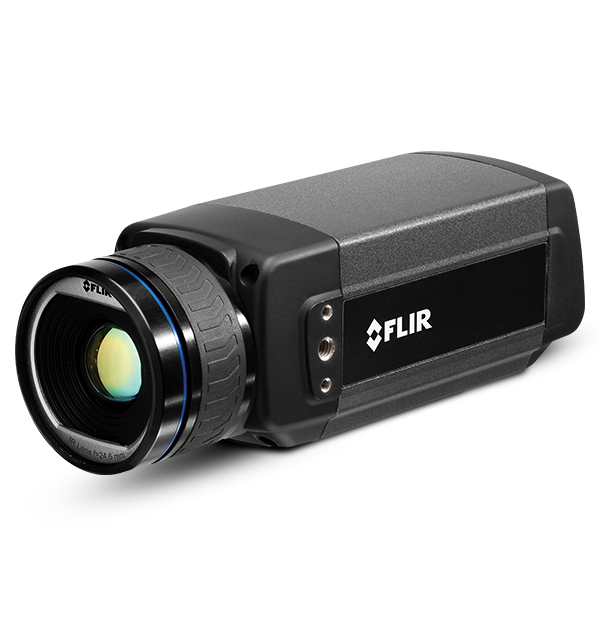

FLIR A615 Thermal Machine Vision Camera (FOV 7°)

Digital I/O connector type: 6-pole jackable screw terminal

Digital Inputs: 2 opto-isolated, 10–30 VDC

Digital Output Purpose: Output to ext. device (programmatically set)

Digital Outputs: 2 opto-isolated, 10–30 VDC, max 100 mA

EMC: EN 61000-6-2:2001 (Immunity), EN 61000-6-3:2001 (Emission), FCC 47 CFR Part 15 Class B (Emission)

f-number: 1.0

Image Frequency: 50 Hz (100/200 Hz with windowing)

Thermal Sensitivity/NETD: < 0.05°C @ +30°C (86°F) / 50 mK

Accuracy: ±2°C or ±2% of reading

Communication & Data Storage

Digital I/O connector type: 6-pole jackable screw terminal

Digital I/O isolation voltage: 500 VRMS

Digital I/O supply voltage: 12/24 VDC, max 200 mA

Digital input purpose: Image tag (start, stop, general), Image flow ctrl. (Stream on/off), Input ext. device (programmatically read)

Digital Inputs: 2 opto-isolated, 10–30 VDC

Digital Output Purpose: Output to ext. device (programmatically set)

Digital Outputs: 2 opto-isolated, 10–30 VDC, max 100 mA

Ethernet: Control and image

Ethernet Communication: TCP/IP socket-based FLIR proprietary and GenICam protocol

Ethernet Connector Type: RJ-45

Ethernet Image Streaming: 16-bit 640 × 480 pixels at 50 Hz, 16-bit 640 × 240 pixels at 100 Hz, 16-bit 640 × 120 pixels at 200 Hz (Signal linear, Temperature linear, Radiometric GigE Vision and GenICam compatible)

Ethernet Protocols: TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP

Ethernet Standard: IEEE 802.3

Ethernet Type: Gigabit Ethernet

USB: Control and image

USB - Communication: TCP/IP socket-based FLIR proprietary

USB - Connector Type: USB Mini-B

USB - Image Streaming: 16-bit 640 × 480

USB - Protocols: TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP

USB - Standard: USB 2 HS

Imaging & Optical

Camera size excl lens (L x W x H): 203 × 73 × 75 mm (8.0 × 2.9 × 3.0 in.)

Detector Pitch: 17 µm

Detector Time Constant: Typical 8 ms

Field of view (FOV): 7° × 5.3° (8.7° diagonal)

FLIR Screen-EST Mode: No

f-number: 1.0

Focal Length: 88.9 mm (3.5 in.)

Focus: Automatic or manual (built in motor)

Image Frequency: 50 Hz (100/200 Hz with windowing)

IR Resolution: 640 × 480 pixels

Lens Identification: Automatic

Minimum Focus Distance: 2.0 m (6.6 ft.)

Spatial resolution (IFOV): 0.19 mrad

Thermal Sensitivity/NETD: < 0.05°C @ +30°C (86°F) / 50 mK

Measurement & Analysis

Accuracy: ±2°C or ±2% of reading

Atmospheric transmission correction: Automatic, based on inputs for distance, atmospheric temperature and relative humidity

Camera size (L x W x H): 271 × 126 × 128 mm (10.7 × 5.0 × 5.0 in.)

Emissivity Correction: Variable from 0.01 to 1.0

External Optics & Windows Correction: Automatic, based on input of optics/window transmission and temperature

Measurement Correction: Global object parameters

Object Temperature Range: -20 to +150°C +100 to +650°C +300 to +2000°C

Optics Transmission Correction: Automatic, based on signals from internal sensors

Reflected apparent temperature correction: Automatic, based on input of reflected temperature

General

Contents: Hard transport case or cardboard box, Thermal imaging camera with lens, Utility CD-ROM, Calibration certificate, Ethernet™ cable, USB cable (FLIR A615), Mains cable, Power cable (pig-tailed), Power supply, Printed Getting Started Guide, Printed Important Information Guide, User documentation CD-ROM, Warranty extension card or Registration card, 6-pole screw terminal (mounted on camera)

Housing material: Aluminium

Packaging Size: 400 x 400 x 540 mm (15.7 x 15.7 x 21.3 in.)

Environmental & Certifications

EMC: EN 61000-6-2:2001 (Immunity), EN 61000-6-3:2001 (Emission), FCC 47 CFR Part 15 Class B (Emission)

Encapsulation: IP 30 (IEC 60529)

Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (77 to 104°F)

Operating Temperature Range: –15°C to +50°C (+5°F to +122°F)

Shock: 25 g (IEC 60068-2-27)

Storage Temperature Range: –40°C to +70°C (-40 to 158°F)

Vibration: 2 g (IEC 60068-2-6)

Power

External Power Connector Type: 2-pole jackable screw terminal

External Power Operation: 12/24 VDC, 24 W absolute max

VoltageAllowed range: 10–30 VDC

Datasheet
