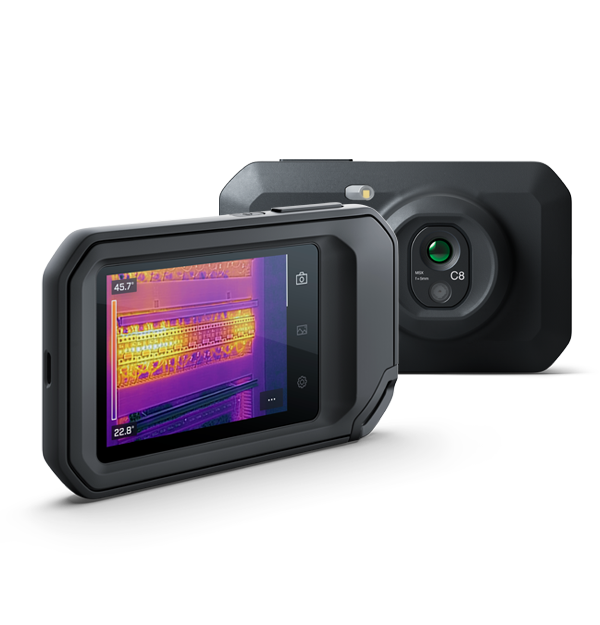

FLIR 18801-0101 Compact Thermal Camera (320 × 240, 35° × 27°, -20°C ~ 450°C)

Object Temperature Range: -20°C to 450°C (-4°F to 842°F)

IR Resolution: 320 × 240 pixels

Thermal Sensitivity/NETD: <50 mK

Accuracy: At ambient temp. 10°C to 35°C and object temp. above 0°C:

• 0°C to 100°C: ±2°C

• 100°C to 450°C: ±2%

Field of view (FOV): 35° × 27°

Digital Camera: 5 MP, Fixed focus, 71.5° × 56° (84° diagonal) field of view

Image Modes:

• Infrared image

• Visual image

• MSX

• Picture in picture (IR area on visual image)

Display: 3.5 in, auto orientation

Storage Media: Built-in

Object Temperature Range: -20°C to 450°C (-4°F to 842°F)

Automatic Image Adjustment: Automatic level and span

Manual Image Adjustment:

• Manual level and span

• 1-Touch level and span

Camera software update:

• Automatic over Wi-Fi

• USB via computer

Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

Detector Pitch: 12 µm

Detector Type: Focal plane array, uncooled microbolometer

Digital Zoom: Yes, pinch zoom, 1–4× continuous

Display resolution: 640 × 480 pixels

f-number: 1.4

Focus: Focus free

Minimum Focus Distance: 0.4 m (1.3 ft)

Spatial resolution (IFOV): 2.0 mrad/pixel

Spectral Range: 7.5 to 13 µm

Image Frequency: 9 Hz

Video Streaming: Yes; MSX, Thermal, Visual, Picture in Picture; USB Video Class colorized uncompressed with overlay 9 Hz
