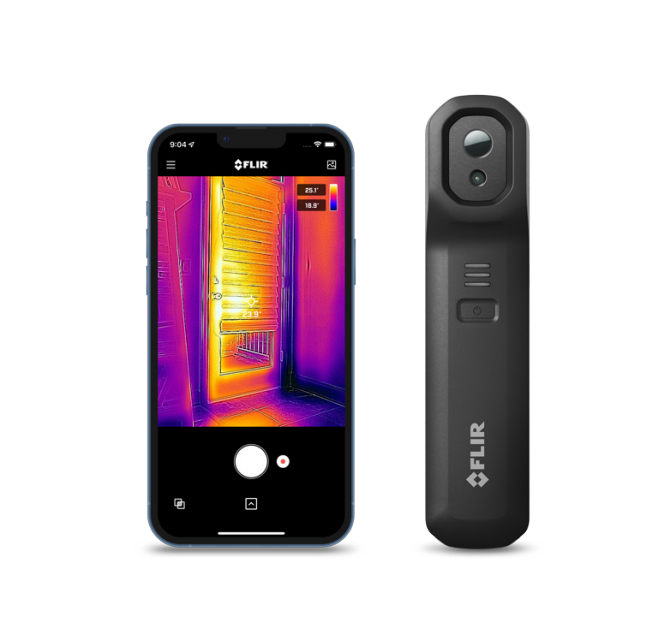

FLIR FLIR EDGE Thermal Camera with Wireless Connectivity (80 × 60; 120°C)

Thermal resolution: 80 × 60 (4,800 pixels)

Object temperature range(s): -20°C to 120°C (-4°F to 248°F)

VividIR image enhancement: No

Image presentation modes: MSX, infrared image, visual image

Live measurement analysis: Hottest, coldest, and 3 adjustable spots

Android & iOS compatibility: Yes, compatible with both iOS and Android devices

Wireless remote operation: Yes (up to 5 m from smart device)

General Features

Device compatibility: iOS (version 15 and later) or Android (version 11 and later) smartphones and tablets

IP rating: IP54

Drop tested: Drop from 2 m (6.56 ft)

FLIR software compatibility: FLIR ONE app, FLIR Ignite, FLIR Thermal Studio

SDK available for app development: Yes

Thermal sensitivity: 70 mK

Certifications: RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU

Operating temperature: -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)

Storage temperature: -40°C to 70°C (-40°F to 158°F)

Size: (w × h × d) 35 mm × 37.5 mm × 149 mm (1.4 in × 1.5 in × 5.9 in)

Weight (incl. battery): 153 g (5.4 oz)

Clip span: 130 mm (min) / 195 mm (max)

Optical Data

Spectral range: 8 μm to 14 μm

Visual resolution: 640 × 480

HFOV / VFOV: 54° ±1° / 42° ±1°

Frame rate: 8.7 Hz

Focus: Fixed 30 cm – infinity

Measurement

Accuracy: ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C 59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)

Emissivity correction: Matte, Semi-Matte, Semi-Glossy, Glossy

Measurement correction: Emissivity; Reflected apparent temperature (22°C / 72°F)

Shutter: Automatic/Manual

Power

Battery life: 2 h 30 min

Battery charge time: 60–90 min for fully charged. 15 min charging, from empty battery, gives 40 min operating time

Interfaces

Wi-Fi: 802.11 a/b/g/n

Bluetooth: Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device

Charging: Female USB-C (5V/1A)

Remote connection: Via Wi-Fi

App

Video and image capture: Yes

File formats: Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))

Spot measurements: Hottest, Coldest, and 3 spot measurement

Adjustable MSX distance: 0.3 m – infinity

Visual battery indicator: 0% to 100%

Radio

Wi-Fi

• Standard: 802.11 a/ac/b/g/n

• Frequency range:

- 2401–2473 MHz

- 5150–5250 MHz

• Max. output power: 15 dBm

Bluetooth

• Frequency range:

- 2400–2484 MHz

• Max. output power: 10 dBm
