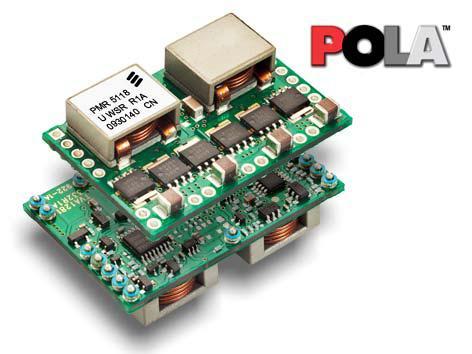

Flex Power Modules PMR5118UWP Non-Isolated / PoL PoL Regul in 4.5-14V O/P 0.7-3.6 50A

Width: 25.9 mm (1.02 in)

Height: 9.84 mm (0.387 in)

Length: 38.6 mm (1.52 in)

Industry: Industrial

Output Power: 180 W

Mounting Style: Through Hole

Number of Outputs: 1 Output

Input Voltage - Max: 14 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 9 V

Output Current-Channel 1: 50 A

Output Voltage-Channel 1: 700 mV to 3.6 V
